Heyco® Flat Nytye® Mounting Platforms - Adhesive-Back and Screw Mount

Part number and specification

Flat Platforms – Adhesive-Back Mount

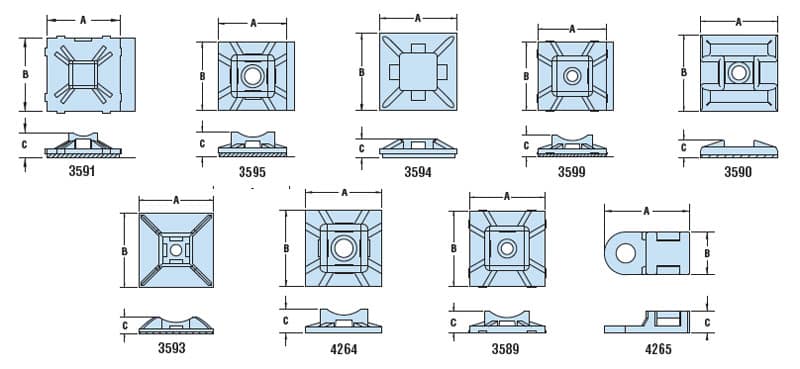

MAX. TENSILE STRENGTH		ADHESIVE	INSERT POINTS	RELEASE TAB?	PART NO. Natural	DESCRIPTION	PART DIMENSIONS
MAX. TENSILE STRENGTH							A		B		C
Lbs.	N						in.	mm.	in.	mm.	in.	mm.
3	13	Rubber	4	yes	3591	MP-050x050-ABR	.50	12,7	.50	12,7	.17	4,3
3	13	Acrylic	4	yes	3591A	MP-050x050-ABA	.50	12,7	.50	12,7	.17	4,3
15	67	Rubber	4	yes	3595	MP-075x075-ABR	.75	19,1	.75	19,1	.28	7,0
		Acrylic	4	yes	3595A	MP-075x075-ABA	.75	19,1	.75	19,1	.28	7,0
		Rubber	4	yes	3594	MP-080x080-ABR	.80	20,3	.80	20,3	.19	4,8
		Acrylic	4	yes	3594A	MP-080x080-ABA	.80	20,3	.80	20,3	.19	4,8
20	89	Rubber	4	yes	3599	MP-100x100-ABR	1.00	25,4	1.00	25,4	.32	8,1
20	89	Acrylic	4	yes	3599A	MP-100x100-ABA	1.00	25,4	1.00	25,4	.32	8,1
50	222	Rubber	2	yes	3590	MP-110x110-ABR *	1.10	27,9	1.10	27,9	.24	6,0
50	222	Rubber	4	yes	3593	MP-115x115-ABR *	1.15	29,2	1.15	29,2	.26	6,6

Standard color natural. *These adhesive-backed parts are also screw mountable.

MAX. TENSILE STRENGTH		SCREW SIZE		INSERT POINTS	PART NO.	DESCRIPTION	PART DIMENSIONS
MAX. TENSILE STRENGTH		SCREW SIZE			PART NO.		A		B		C
Lbs.	N	in.	mm.		Natural		in.	mm.	in.	mm.	in.	mm.
24	105	#6	3,5	4	4264	MP-075x075-S6	.75	19,1	.75	19,1	.24	6,0
50	222	#8	4,0	4	4265	MP-038x038-S8	.38	9,5	.75	19,1	.20	5,0
38	170			4	3589	MP-100x100-S8	1.00	25,4	1.00	25,4	.28	7,1
15	68			2	3580	MP-110x110-S8	1.10	27,9	1.10	27,9	.20	5,1
16	70	#6	3,5	4	3581	MP-115x115-S6	1.15	29,2	1.15	29,2	.22	5,6

Standard color natural.

Features

Multiple sizes, strengths, and mounting options anchor Nytyes® securely.
Five types:
1) Flat – Adhesive-Back and Screw Mounts
2) Saddle – Screw Mount Only
3) Push Mount – Arrowhead and Blind Mounts
4) Snap Over Bolt
5) Stainless Steel Edge Clip “SunRunner Series”
Rubber based adhesive effective up to 158°F (70°C)
Acrylic based adhesive effective up to 167°F (75°C)
Apply Adhesive-Backed parts to a clean, dry surface.
Parts are not intended for direct exposure to harsh environments (extreme heat/sunlight, humidity, etc.) and better suited for use inside an enclosure in these types of environments.

Material		Nylon 6/6
Certifications		Recognized under the Component Program of Underwriters’ Laboratories File E54523 (Adhesive-Back Mount parts only)
Flammability Rating		94V-2
Temperature Range		-32°F (0°C) to 158°F (70°C)
