Specifications

Part number and specification

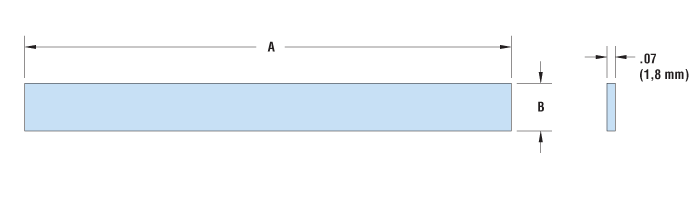

PART NO.								DESCRIPTION	PART DIMENSIONS
PART NO.									A Length		B Width
Black	White	Gray	Orange	Yellow	Red	Blue	Green		A Length		B Width
Black	White	Gray	Orange	Yellow	Red	Blue	Green		ft.	m	in.	mm.
16343	16344	16345	16346	16347	16348	16349	16350	HLR-1/2-5	16.4	5	0.51	13
16359	16360	16361	16362	16363	16364	16365	16366	HLR-3/4-5	16.4	5	0.75	19
16375	16376	16377	16378	16379	16380	16381	16382	HLR-1-5	16.4	5	0.98	25
16391	16392	16393	16394	16395	16396	16397	16398	HLR-1/2-10	32.8	10	0.51	13
16407	16408	16409	16410	16411	16412	16413	16414	HLR-3/4-10	32.8	10	0.75	19
16423	16424	16425	16426	16427	16428	16429	16430	HLR-1-10	32.8	10	0.98	25

Features

Reusable
Easy application and bundle of cables
Rolls can be cut to length offering flexibility on job site/application

QuickSpecs

Material	Nylon
Peel Durability	>5000 Cycles
Temperature Range	-4°F (-20°C) to 176°F (80°C)

Competitor Cross Reference

Use our cross-reference tool to find equivalent Heyco parts that match competitor products, ensuring compatibility and performance.
