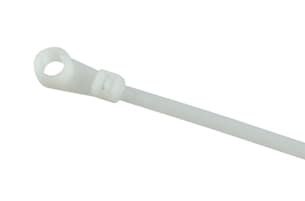

Heyco® Nytye® Screw Mount Nylon Cable Ties

Specifications

Part number and specification

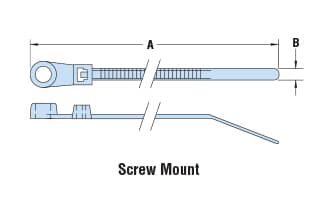

PART SPECIFICATIONS PART NO. DESCRIPTION PART DIMENSIONS SCREW SIZE
Tensile Strength Max. Bundle Diameter Natural UV Black A Length B Width
Lbs. N in. mm. in. mm. in. mm.

Screw Mount

18 80 .87 22,0 13307 13307B MNT-18-044 4.41 112 .10 2,5 #4 Screw
(Heat Stabilized/UV Black) 23307B
40 178 1.38 35,0 13308 13308B MNT-40-067 6.69 170 .14 3,6 #8 Screw
(Heat Stabilized/UV Black) 23308B
50 222 1.75 44,4 3560 3560B MNT-150 8.00 203 .19 4,8 #10 Screw
1.97 50,0 13309 13309B MNT-50-086 8.66 220 .17 4,3
(Heat Stabilized/UV Black) 23309B
Standard color natural and UV Black. Consult Heyco for other colors.



Features



QuickSpecs

Material Nylon 6/6, Nylon 6/6 UV Black, or Nylon 6/6 Heat Stabilized/UV Black
Flammability Rating 94V-2
Temperature Range Nylon 6/6 and Nylon 6/6 UV Black: -40°F (-40°C) to 185°F (85°C)
Nylon 6/6 Heat Stabilized/UV Black: -40°F (-40°C) to 221°F (105°C)

Competitor Cross Reference
Use our cross-reference tool to find equivalent Heyco parts that match competitor products, ensuring compatibility and performance.
