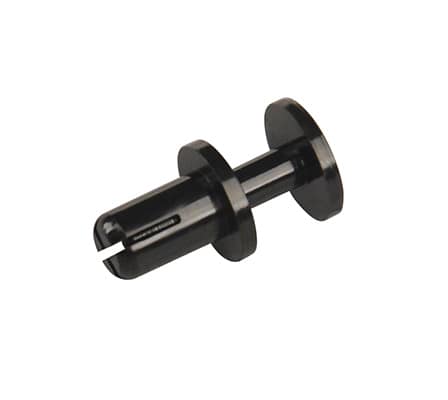

HEYClip™ Type P Snap Rivets
Polysulfone High Temperature Snap Rivets

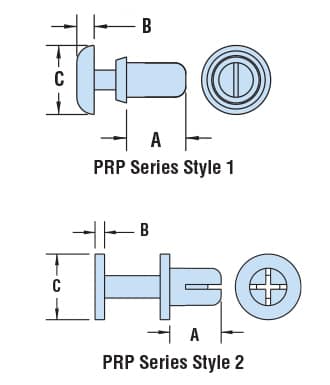

| WILL FIT THESE PANELS | PART NO. | DESCRIPTION | PART DIMENSIONS | Style | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MOUNTING HOLE DIA. | ASSEMBLED PANEL THICKNESS | |||||||||||||
| Min. | Max. | Black | A Length | B Head Height | C Head Diameter | |||||||||
| in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | |||
PRP Series |
||||||||||||||
| .122 | 3,1 | .078 | 2,0 | .118 | 3,0 | 9349 | PRP 122-079 | .18 | 4,5 | .06 | 1,6 | .25 | 6,4 | 1 |
| .118 | 3,0 | .157 | 4,0 | 9350 | PRP 122-118 | .22 | 5,6 | |||||||
| .161 | 4,1 | .157 | 4,0 | .197 | 5,0 | 9351 | PRP 122-157 | .26 | 6,5 | .04 | 1,0 | .28 | 7,0 | 2 |
| PRP | |
| Material | Polysulfone (PSU) |
| Flammability Rating | 94-HB |
| Temperature Range | 32°F (0°C) to 302°F (150°C) |
