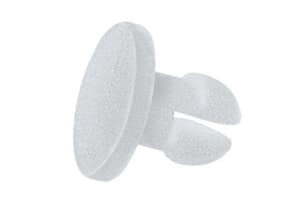

HEYClip™ Nylon Push-In Fasteners

Assembled Panel Thickness Sequence
Download Datasheet
Specifications

Part number and specification

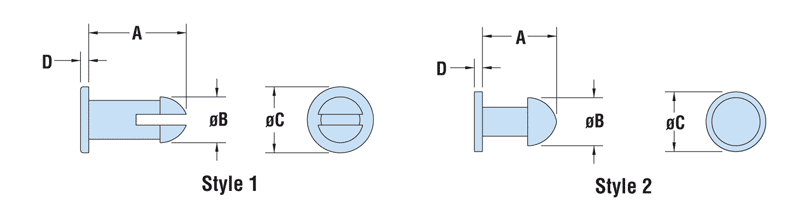

ASSEMBLED PANEL THICKNESS MOUNTING HOLE DIA. PART NO. DESCRIPTION PART DIMENSIONS STYLE CAD
Natural Black A Length B Clip Dia. C Head Dia. D Head Height
in. mm. in. mm. in. mm. in. mm. in. mm. in. mm.

PF Series For Combined Panel Thickness ≤ .250" (6,4 mm)
.07 1,7 .165 4,2 0351 0351B PF 065-165 .20 5,1 .20 5,1 .34 8,7 .12 3,1 1 CAD
.09 2,4 .093 2,4 0340 0340B PF 093-093* .17 4,3 .11 2,7 .28 7,1 .03 0,7 2 CAD
.10 2,5 .245 6,2 0384 0384B PF 098-245 .27 6,8 .28 7,1 .50 12,7 .06 1,4 1 CAD
.12 2,9 .125 3,2 0339 0339B PF 115-125 .20 5,1 .15 3,7 .25 6,4 .04 1,0 1 CAD
.12 3,1 .089 2,3 0341 0341B PF 121-089* .21 5,3 .15 3,7 .31 7,9 .04 1,0 2 CAD
.115 2,9 0347 0347B PF 121-115 .25 6,2 .14 3,6 .20 5,2 .04 1,0 1 CAD
.200 5,1 0358 0358B PF 121-200 .27 6,9 .24 6,1 .47 11,9 .05 1,3 1 CAD
.13 3,4 .175 4,4 0350 0350B PF 133-175 .27 6,9 .20 5,1 .34 8,7 .04 1,0 1 CAD
.16 4,0 .115 2,9 0343 0343B PF 156-115 .29 7,4 .14 3,6 .20 5,2 .04 1,0 1 CAD
.210 5,3 0360 0360B PF 156-210 .31 7,8 .23 5,8 .47 11,9 .05 1,3 CAD
.17 4,3 .260 6,6 0370 0370B PF 171-260 .36 9,1 .30 7,5 .59 15,1 .06 1,5 1 CAD
.19 4,8 .155 3,9 0342 0342B PF 190-155 .28 7,1 .18 4,6 .20 5,2 .04 1,0 CAD
.24 6,0 .200 5,1 0352 0352B PF 237-200 .39 9,8 .24 6,0 .47 11,9 .05 1,3 CAD
.25 6,4 .200 5,1 0353 0353B PF 250-200 .42 10,8 .22 5,7 .34 8,7 .06 1,5 1 CAD
.218 5,5 0362 0362B PF 250-218 .36 9,1 .28 7,2 .41 10,3 .05 1,1 CAD
.240 6,1 0371 0371B PF 250-240 .43 10,9 .30 7,5 .59 15,1 .06 1,5 CAD
Standard color natural. Consult Heyco for black and other colors. *No slot.



Features

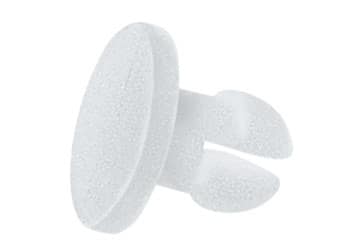

  • Slotted leg design allows for both compression through the mounting hole and then expansion back to original shape—to lock assembled components securely.
  • May be disassembled and reused.
  • Offer a low cost way to assemble metal, plastic, composite, wood, and other thin gauge materials.
  • Snap into mounting holes with fingertip pressure—no tools required.
  • Vibration, abrasion, and corrosion resistant.

QuickSpecs

Material Nylon 6/6
Flammability Rating 94V-2
Temperature Range

32°F (0°C) to 185°F (85°C)

Competitor Cross Reference
Use our cross-reference tool to find equivalent Heyco parts that match competitor products, ensuring compatibility and performance.
