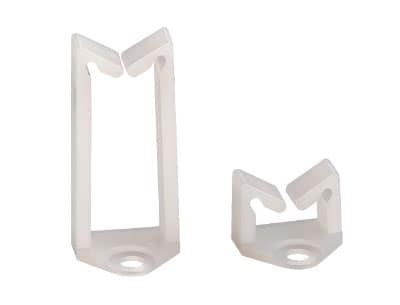

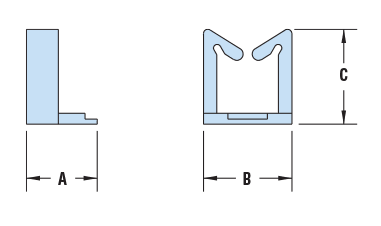

| WIRE CAPACITY | PART NO. | DESCRIPTION | OVERALL HEIGHT C | FOOTPRINT A x B | MOUNTING HOLE DIA. | CAD | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Natural | ||||||||||
| in. | mm. | in. | mm. | in. | mm. | in. | mm. | |||
Top Entry - Regular Gate |
||||||||||
| .44 x .17 | 11,1 x 4,3 | 12025 | CHSR R-11 | .45 | 11,4 | .49 x .61 | 12,4 x 15,5 | .144 | 3,7 | |
| .44 x .36 | 11,1 x 9,1 | 12026 | CHSR R-16 | .64 | 16,3 | |||||
| .44 x .73 | 11,1 x 18,5 | 12027 | CHSR R-25 | 1.00 | 25,4 | |||||
| .44 x 1.04 | 11,1 x 26,4 | 12028 | CHSR R-33 | 1.32 | 33,5 | |||||
Top Entry - Latch Gate |
||||||||||
| .44 x .14 | 11,1 x 3,6 | 12029 | CHSR L-11 | .45 | 11,4 | .49 x .61 | 12,4 x 15,5 | .144 | 3,7 |  |
| .44 x .34 | 11,1 x 8,6 | 12030 | CHSR L-16 | .64 | 16,3 | |
||||
| .44 x .72 | 11,1 x 18,3 | 12031 | CHSR L-25 | 1.00 | 25,4 | |
||||
| .44 x 1.00 | 11,1 x 25,4 | 12032 | CHSR L-33 | 1.31 | 33,3 | |
||||
| Rivet Table for CHSR | |||
|---|---|---|---|
| PART NO. Black | Description | PANEL THICKNESS | |
| in. | mm. | ||
| 9044 | PR 142-047 BLACK | .01-.05 | 0,3-1,2 |
| 9046 | PR 142-083 BLACK | .05-.08 | 1,2-2,1 |
| 9048 | PR 142-106 BLACK | .07-.11 | 1,8-2,7 |
| 9050 | PR 142-118 BLACK | .08-.12 | 2,1-3,0 |
| 9052 | PR 142-146 BLACK | .11-.14 | 2,8-3,7 |
| 9054 | PR 142-177 BLACK | .14-.18 | 3,6-4,6 |
| 9056 | PR 142-217 BLACK | .18-.22 | 4,6-5,6 |
| Material | Nylon 6/6 |
|---|---|
| Flammability Rating | 94V-2 |
| Temperature Range | 32°F (0°C) to 185°F (85°C) |
