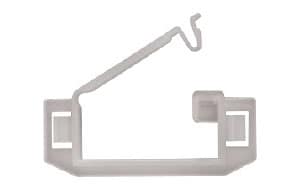

HEYClip™ Hinged Edge Cable Holders
Designed for Rectangular Edge Slot or Through-Hole Mounting – suitable for retrofit applications

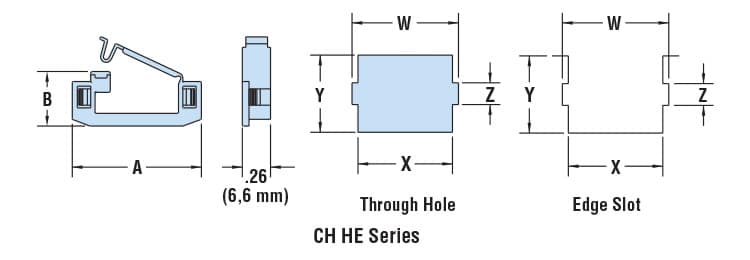

| WIRE CAPACITY | PANEL DIMENSIONS | PART NO. Natural | DESCRIPTION | PART DIMENSIONS | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Thru Hole or Edge Slot | Thickness | ||||||||||||||||
| X | Y | Z | W | A | B | ||||||||||||
| in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | ||
| .77 x .20 | 19,5 x 5,2 | .858 | 21,8 | .421 | 10,7 | .161 | 4,1 | .98 | 25,0 | .031 - .063 | 0,8 - 1,6 | 3300 | CH HE-25 | 1.19 | 30,2 | .47 | 12,0 |
| 1.02 | 26,0 | .079 | 2,0 | ||||||||||||||
| .77 x .47 | 19,5 x 12,0 | .870 | 22,0 | .710 | 18,0 | .200 | 5,0 | .98 | 25,0 | .020 - .063 | 0,5 - 1,6 | 3301 | CH HE-22 | 1.22 | 31,0 | .75 | 19,0 |
| Material | Nylon 6/6 | |
|---|---|---|
| Flammability Rating | 94V-2 | |
| Temperature Range | 32°F (0°C) to 185°F (85°C) |
