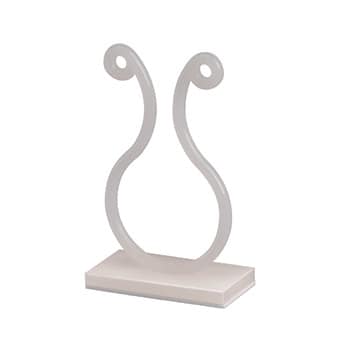

HEYClip™ Wave Locks – Adhesive Back Mount

Wave Locks – Adhesive Back Mount

Specifications

Part number and specification

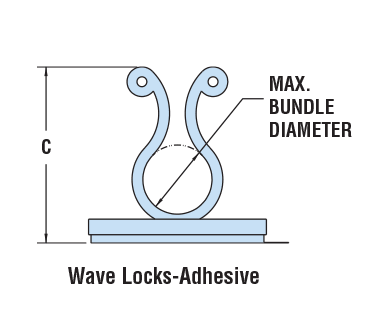

MAXIMUM BUNDLE DIAMETER		PART NO.	DESCRIPTION	PACKAGING		OVERALL HEIGHT
MAXIMUM BUNDLE DIAMETER		Natural		Std. Pack	Small Pack †	C
in.	mm.	Natural		Std. Pack	Small Pack †	in.	mm.
WL-A Series
.30 - .40	7,6 - 10,2	12096	WL 350A	5000	25	1.10	27,9
.40 - .50	10,2 - 12,7	12097	WL 450A	5000	25	1.26	32,0
.70 - .80	17,8 - 20,3	12098	WL 750A	5000	25	1.61	40,9

Standard color natural. † To order Small Packs, please add the suffix -P to Part No.; e.g., 12096-P

Material	Nylon 6/6 with Acrylic Adhesive
Temperature Range	50°F (10°C) to 95°F (35°C)

Competitor Cross Reference
