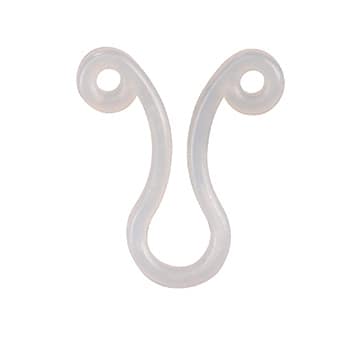

HEYClip™ Wave Locks – Standard

Wave Locks – Standard
Download Datasheet
Specifications

Part number and specification

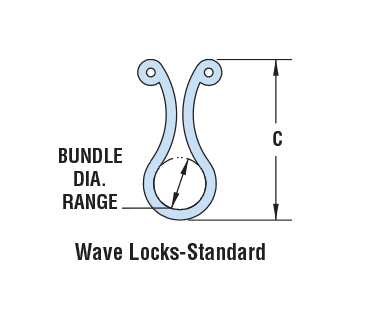

BUNDLE DIAMETER RANGE PART NO. Natural DESCRIPTION OVERALL HEIGHT C
in. mm. in. mm.

WL Series
.13 - .15 3,2 - 3,8 12085 WL 125 .48 12,2
.16 - .24 4,1 - 6,1 12086 WL 200 .82 20,7
.20 - .30 5,1 - 7,6 12087 WL 250 .91 23,0
.30 - .40 7,6 - 10,2 12088 WL 350 1.03 26,2
.70 - .80 17,8 - 20,3 12091 WL 750 1.52 38,6
Standard color natural.



Features

  • Part Description Key: WL, XXX, where XXX = Average Bundle Diameter (inches).
  • Barreled ends for greater holding power.
  • Smooth rounded edges won’t cut into cable’s insulations – or installers hand.
  • Locking ends twist into place with fingertip pressure.

QuickSpecs

Material Nylon 6/6
Flammability Rating 94V-2
Temperature Range 32°F (0°C) to 185°F (85°C)

Competitor Cross Reference
Use our cross-reference tool to find equivalent Heyco parts that match competitor products, ensuring compatibility and performance.
