Heyco® Hinged Edge Strain Relief Bushings

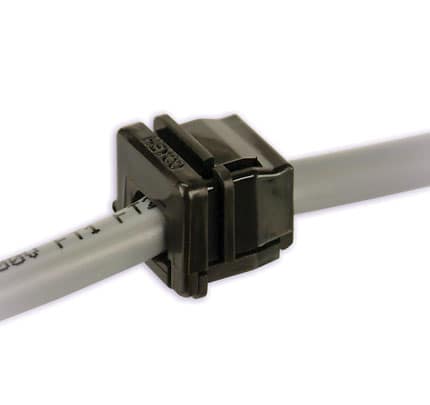

Designed for Rectangular Edge Slot or Split Panel Mounting – suitable for retrofit applications.

Specifications

Part number and specification

WILL FIT THESE CABLES				PANEL DIMENSIONS						PART NO.	DESCRIPTION	Body Length
UL Type	AWG/ Conductors	Approximate Size		Edge Slot or Split Panel				Thickness		Black
		Approximate Size		X		Y		Thickness
		in.	mm.	in.	mm.	in.	mm.	in.	mm.			in.	mm.

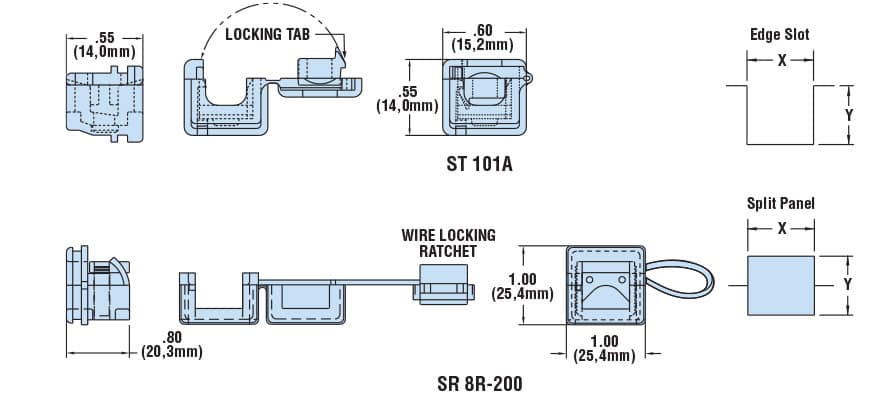

ST 101A - For Round or Flat Cables
SV & SVT	18/2	.220 .245	5,6 6,2	.512	13,0	.453	11,5	.06	1,6	1839	ST 101A	.55	14,0
SV & SVT	18/3	.250 .255	6,4 6,5
HPD	18/2 16/2	.270 .290	6,9 7,4
SR 8R-200 - For Round, Flat or Multiple Cables
Round, Flat or Multiple		up to .600	up to 15,2	.875	22,2	.875	22,2	.10	2,5	1266	SR 8R-200	.80	20,3

Standard color black. Consult Heyco for white and other colors.

Designed for rectangular edge slot or split panel mounting – suitable for retrofit applications.
Independent of final mounting, Hinged Edge Strain Reliefs self-lock onto the cable and may be preassembled “off line” for final assembly at a later time or remote location.
Hinged Edge Strain Reliefs hold so well they pass the UL pull-out test require- ments with or without panel support.
Rectangular design eliminates the possibility of part rotation under forces of twist.
SR 8R-200’s unique wire locking ratchet allows for a generous wire range of .25″ (6,4 mm) to .60″ (15,2 mm).
Heyco’s automated Pre-Assembly Equipment (for ST 101A only) speeds assembly onto the cable, reducing both cost and the risk of carpal tunnel syndrome.
Consult Heyco for other wire types and sizes.

Material		Nylon 6/6
Certifications		Recognized under the Component Program of Underwriters’ Laboratories File E15331
Certifications		Canadian Certified by Canadian Standards Association File 8919
Flammability Rating		94V-2
Temperature Range		32°F (0°C) to 221°F (105°C)
