Heyco ® Quarter-Turn Mount Wire Clips Helios QTM-5

Specifications

Part number and specification

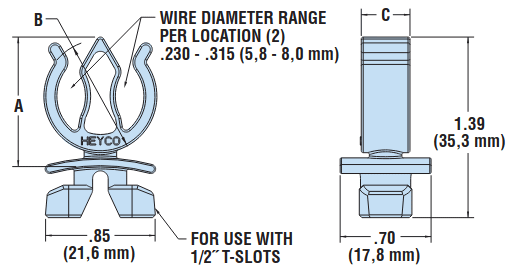

WIRE DIAMETER RANGE 1-2 Wires	PART NO.			DESCRIPTION	PART DIMENSION
	Nylon 6/6 Natural	HS Nylon 6/6 Black	VO Nylon 6/6 Black		A Height		B Width		C Depth
	Nylon 6/6 Natural	HS Nylon 6/6 Black	VO Nylon 6/6 Black		in.	mm.	in.	mm.	in.	mm.
.230 (5,8 mm) - .315 (8,0 mm) Each Cable	S6639	S6639B	S6639F	Helios QTM-5	1.03	26,2	.87	22,1	.38	9,6

All new Quarter-Turn Mount (QTM-5) products, designed to work with the standard Powermation rail and racking systems for industrial automation and robotics workstations.
QTM-5 could be used in any 1/2˝ T-Slot racking or rail system from other manufacturers.
Simple application by hand with quick twist 90° swivel for friction fit hold in place – high pull out retention.
Simply twist to remove for routing and location adjustment.
Material choices cover a number of application requirements for flammability and temperature.
Holds up to 2 cables between .230 – .315˝ (5,8 – 8,0 mm) each.
Cables install with fingertip pressure.
Design provides high axial retention with one cable and even better with both cable bays filled.

Material	Natural Nylon 6/6	Black Heat Stable / UV Stable Nylon	Black Nylon 6/6
Flammability Rating	UL 94 V-2	UL 94 V-2	UL 94 V-0
Temperature Range	32°F (0°C) to 185°F (85°C)	-40°F (-40°C) to 239°F (115°C)	-40°F (-40°C) to 185°F (85°C)
