Heyco ® Quarter-Turn Mount Wire Clips SBCQTM-5

Specifications

Part number and specification

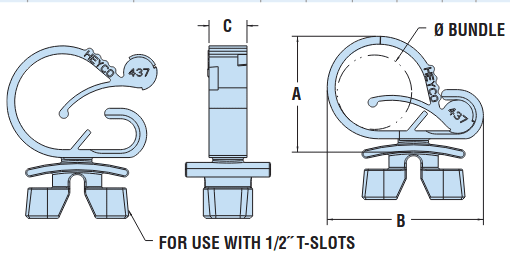

BUNDLE DIAMETER				PART NO.			DESCRIPTION	PART DIMENSION
BUNDLE DIAMETER				Nylon 6/6 Natural	HS Nylon 6/6 Black	VO Nylon 6/6 Black		A Height		B Width		C Depth
in.	mm.	in.	mm.	Nylon 6/6 Natural	HS Nylon 6/6 Black	VO Nylon 6/6 Black		in.	mm.	in.	mm.	in.	mm.
.29	7,4	.44	11,2	15486	15486B	15486F	SBCQTM-5 437	1.03	26,2	1.12	28,4	.31	7,9
.41	10,4	.69	17,5	15490	15490B	15490F	SBCQTM-5 687	1.18	30,0	1.24	31,5
.60	15,2	.88	22,2	15494	15494B	15494F	SBCQTM-5 875	1.51	38,4	1.66	42,2

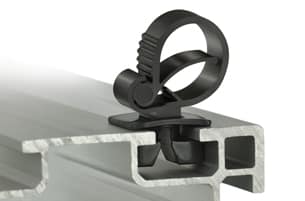

All new Quarter-Turn Mount (QTM-5) products, designed to work with the standard Powermation rail and racking systems for industrial automation and robotics workstations.
QTM-5 could be used in any 1/2˝ T-Slot racking or rail system from other manufacturers.
Simple application by hand with quick twist 90° swivel for friction fit hold in place – high pull out retention.
Simply twist to remove for routing and location adjustment.
Material choices cover a number of application requirements for flammability and temperature.
Wide cable diameter range handles multiple applications.
Releasable and reusable.
Secure clamping will not release easily.
Locking feature prevents twisting apart.

Material	Natural Nylon 6/6	Black Heat Stable / UV Stable Nylon	Black Nylon 6/6
Flammability Rating	UL 94 V-2	UL 94 V-2	UL 94 V-0
Temperature Range	32°F (0°C) to 185°F (85°C)	-40°F (-40°C) to 239°F (115°C)	-40°F (-40°C) to 185°F (85°C)
