Heyco Wire Ducting

2-meter PVC wire ducting pieces engineered to protect and organize large bundles of wires and cables.
Download Datasheet
Specifications

Part number and specification

WD Series - WIDE
NOMINAL WIDTH in. NOMINAL HEIGHT in. PART NO. DESCRIPTION ACTUAL WIDTH in. ACTUAL WIDTH mm. ACTUAL HEIGHT in. ACTUL HEIGHT mm. D in. D mm. E in. E mm. FIGURE
GRAY WHITE
1 1.5 13600 13600WH WD1X1.5 0.984 25 1.575 40 0.24 6.0 0.31 8.0 1
1 2 13602 13602WH WD1X2 0.984 25 1.969 50 0.24 6.0 0.31 8.0
1 3 13603 13603WH WD1X3 0.984 25 3.15 80 0.31 8.0 0.39 10.0
1.5 1.5 13610 13610WH WD1.5X1.5 1.575 40 1.575 40 0.24 6.0 0.31 8.0
1.5 2 13612 13612WH WD1.5X2 1.575 40 1.969 50 0.24 6.0 0.31 8.0
1.5 3 13613 13613WH WD1.5X3 1.575 40 3.15 80 0.31 8.0 0.39 10.0
2 2 13622 13622WH WD2X2 1.969 50 1.969 50 0.24 6.0 0.31 8.0
2 3 13623 13623WH WD2X3 1.969 50 3.15 80 0.31 8.0 0.39 10.0
2 4 13624 13624WH WD2X4 1.969 50 3.937 100 0.39 10.0 0.47 12.0
3 2 13632 13632WH WD3X2 3.15 80 1.969 50 0.24 6.0 0.31 8.0 2
3 3 13633 13633WH WD3X3 3.15 80 3.15 80 0.31 8.0 0.39 10.0
3 4 13634 13634WH WD3X4 3.15 80 3.937 100 0.39 10.0 0.47 12.0
4 2 13642 13642WH WD4X2 3.937 100 1.969 50 0.24 6.0 0.31 8.0
4 3 13643 13643WH WD4X3 3.937 100 3.15 80 0.31 8.0 0.39 10.0
4 4 13644 13644WH WD4X4 3.937 100 3.937 100 0.39 10.0 0.47 12.0
WDT Series - THIN
NOMINAL WIDTH in. NOMINAL HEIGHT in. PART NO. DESCRIPTION ACTUAL WIDTH in. ACTUAL WIDTH mm. ACTUAL HEIGHT in. ACTUAL HEIGHT mm. D in. D mm. E in. E mm. FIGURE
GRAY WHITE
1 1.5 13700 13700WH WDT1X1.5 0.984 25 1.575 40 0.16 4.0 0.24 6.0 1
1 2 13702 13702WH WDT1X2 0.984 25 1.969 50
1 3 13703 13703WH WDT1X3 0.984 25 3.15 80
1.5 1.5 13710 13710WH WDT1.5X1.5 1.575 40 1.575 40
1.5 2 13712 13712WH WDT1.5X2 1.575 40 1.969 50
1.5 3 13713 13713WH WDT1.5X3 1.575 40 3.15 80
2 2 13722 13722WH WDT2X2 1.969 50 1.969 50
2 3 13723 13723WH WDT2X3 1.969 50 3.15 80
2 4 13724 13724WH WDT2X4 1.969 50 3.937 100
3 2 13732 13732WH WDT3X2 3.15 80 1.969 50 2
3 3 13733 13733WH WDT3X3 3.15 80 3.15 80
3 4 13734 13734WH WDT3X4 3.15 80 3.937 100
4 2 13742 13742WH WDT4X2 3.937 100 1.969 50
4 3 13743 13743WH WDT4X3 3.937 100 3.15 80
4 4 13744 13744WH WDT4X4 3.937 100 3.937 100


Features

  • Cover included.
  • Ducting organizes and protects large bundles of cable.
  • Shields cables from impact and prevents tangled mess.
  • Removable cover makes for easy access for maintenance and expansion.
  • Wide and thin slotted options for cabling breakout as needed in your configuration.
  • Excellent for use in data centers and high density cabling areas.
  • Slotted fingers break off cleanly for larger cable breakouts where needed.



Material PVC
Temperature Range -40°F (-40°C) to 149°F (65°C)

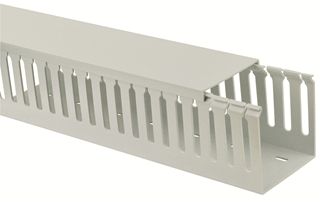

heyco-white-pvc-wire-ducting
