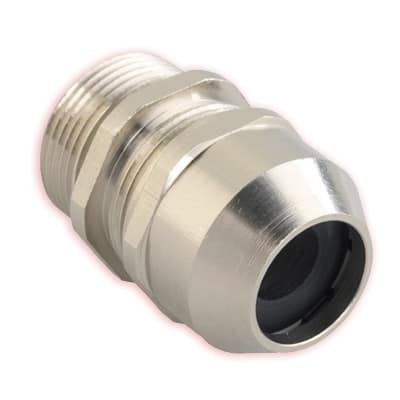

HEYBrid™ Brass/Nylon Liquid Tight Cordgrips, Metric Hubs

Part number and specification

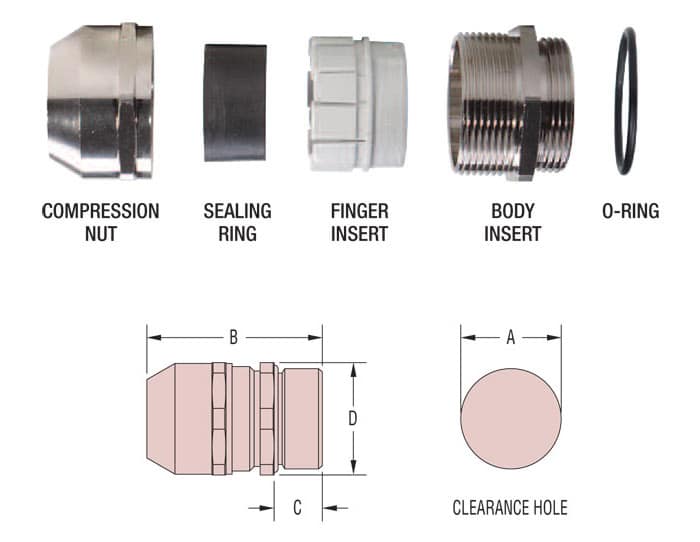

CABLE DIA. RANGE				PART NO.	THREAD SIZE	PART DIMENSIONS
Minimum		Maximum				A Clearance Hole Dia.		B Max. O.A. Length		C Thread Length		D Wrenching Nut Flat Size
in.	mm.	in	mm.			in.	mm.	in.	mm.	in.	mm.	in.	mm.
.04	1,0	.20	5,0	4472	M12 x 1,5	.50	12,5	1.14	29,0	.47	12,0	.59	15,0
.12	3,0	.28	7,0	4473	M12 x 1,5	.50	12,5	1.14	29,0	.47	12,0	.59	15,0
.08	2,0	.24	6,0	4474	M16 x 1,5	.64	16,5	1.26	32,0	.47	12,0	.71	18,0
.18	4,5	.39	10,0	4475	M16 x 1,5	.64	16,5	1.26	32,0	.47	12,0	.71	18,0
.14	3,5	.31	8,0	4476	M20 x 1,5	.80	20,5	1.46	37,0	.47	12,0	.87	22,0
.28	7,0	.51	13,0	4477	M20 x 1,5	.80	20,5	1.46	37,0	.47	12,0	.87	22,0
.20	5,0	.43	11,0	4478	M25 x 1,5	1.00	25,4	1.69	43,0	.47	12,0	1.10	28,0
.39	10,0	.67	17,0	4479	M25 x 1,5	1.00	25,4	1.69	43,0	.47	12,0	1.10	28,0
.28	7,0	.59	15,0	4480	M32 x 1,5	1.27	32,3	1.89	48,0	.59	15,0	1.42	36,0
.51	13,0	.83	21,0	4481	M32 x 1,5	1.27	32,3	1.89	48,0	.59	15,0	1.42	36,0
.59	15,0	.91	23,0	4482	M40 x 1,5	1.59	40,5	2.17	55,0	.59	15,0	1.81	46,0
.75	19,0	1.10	28,0	4483	M40 x 1,5	1.59	40,5	2.17	55,0	.59	15,0	1.81	46,0
.79	20,0	1.14	29,0	4484	M50 x 1,5	1.99	50,5	2.17	55,0	.59	15,0	2.17	55,0
.98	25,0	1.38	35,0	4485	M50 x 1,5	1.99	50,5	2.17	55,0	.59	15,0	2.17	55,0
1.10	28,0	1.54	39,0	4486	M63 x 1,5	2.49	63,2	2.28	58,0	.59	15,0	2.76	70,0
1.38	35,0	1.89	48,0	4487	M63 x 1,5	2.49	63,2	2.28	58,0	.59	15,0	2.76	70,0
1.73	44,0	2.17	55,0	4488	M63 x 1,5	2.49	63,2	2.28	58,0	.59	15,0	3.15	80,0

Features

Provide the durability of a nickel-plated brass enclosure with drastically lower installed cost and more secure wire gripping with nylon finger design.
HEYBrid Cordgrips make it possible to insert different diameters of cable in the same cable gland easily, flexibly and with a good seal.
Movable articulated fingers provide large clamping and sealing areas for secure and flexible everyday use.
When tightening the compression nut of the cordgrip, the segmented finger design compresses around the gland and wire to provide a torsion proof seal.
Nickel-plated brass construction for superior protection of flexible cables.
Nickel-plated finish over brass provides excellent corrosion resistance and durability.
IP 68 rated.
For use in clearance or threaded holes.
Multiple sizes for flexible cord diameters ranging from .04″ (1,0 mm) to 2.17″ (55,0 mm).
We recommend using the smallest cordgrip that accommodates your cable size.
Sealing gland is molded in Thermoplastic Polymer Elastomer (TPE) material.
Locknuts not included. For metal locknut specifications or to order locknuts separately, see: NPT, PG, or Metric.
DFARS Compliant

Material		Nickel-plated Brass w/polyamide PA 6 finger insert, TPE Sealing Gland and Buna-N O-Ring
Certifications		Recognized under the Component Program of Underwriters’ Laboratories File E51579 to both Canadian and U.S. requirements
Certifications		VDE Approved
Temperature Range		-40°F (-40°C) to 212°F (100°C)
IP Rating		IP 68, IP 69K
