HEYbrid™ Stainless Steel Liquid Tight Cordgrips - PG Hubs

Part number and specification

CABLE DIA. RANGE				PART NO.	DESCRIPTION	PART DIMENSIONS
Minimum		Maximum				A Clearance Hole Dia.		B Max. O.A. Length		C Thread Length		D		E
												Wrenching Nut
												Thickness		Flat Size
in.	mm.	in.	mm.			in.	mm.	in.	mm.	in.	mm.	in.	mm.	in.	mm.

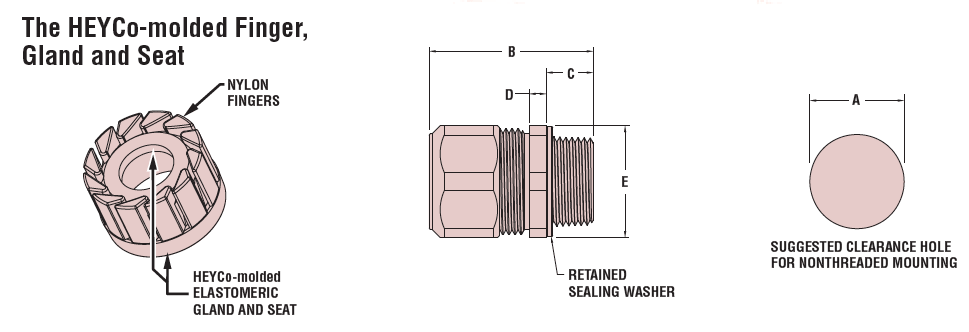

HEYco-molded Finger/Gland
.065	1,7	.210	5,3	M6030	RSSCG PG7	.492	12,5	1.24	31,5	.35	8,9	.20	5,1	.75	19,1
.115	2,9	.250	6,4	M6031	SSCG PG7	.492	12,5	1.24	31,5	.35	8,9	.20	5,1	.75	19,1
.065	1,7	.230	5,8	M6032	RSSCG PG9	.599	15,2	1.31	33,3	.34	8,6	.20	5,1	.88	22,4
.105	2,7	.315	8,0	M6033	SSCG PG9	.599	15,2	1.31	33,3	.34	8,6	.20	5,1	.88	22,4
.095	2,4	.290	7,4	M6036	RSSCG PG13.5	.804	20,4	1.58	40,1	.42	10,7	.20	5,1	1.06	26,9
.170	4,3	.450	11,4	M6037	SSCG PG13.5	.804	20,4	1.58	40,1	.42	10,7	.20	5,1	1.06	26,9
.180	4,6	.400	10,2	M6038	RSSCG PG16	.886	22,5	1.73	43,9	.45	11,4	.20	5,1	1.25	31,8
.260	6,6	.545	13,8	M6039	SSCG PG16	.886	22,5	1.73	43,9	.45	11,4	.20	5,1	1.25	31,8
.250	6,4	.490	12,4	M6040	RSSCG PG21	1.115	28,3	1.91	48,5	.53	13,5	.20	5,1	1.31	33,3
.435	11,0	.705	17,9	M6041	SSCG PG21	1.115	28,3	1.91	48,5	.53	13,5	.20	5,1	1.31	33,3
.490	12,4	.785	19,9	M6042	RSSCG PG29	1.470	37,3	2.19	55,6	.59	15,0	.20	5,1	1.75	44,5
.590	15,0	1.000	25,4	M6043	SSCG PG29	1.470	37,3	2.19	55,6	.59	15,0	.20	5,1	1.75	44,5

Features

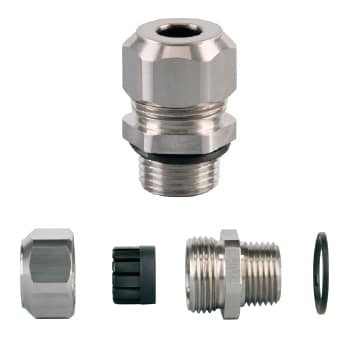

HEYCo-molded gripping finger/gland technology accommodates the widest cable range over the fewest sku’s.
Rolled grease-free threads prevent galling and allow for multiple assemblies and disassemblies.
No messy, unsightly thread lubrication required.
Approved for NEMA 4, 4X, 6 and 6P applications.
Self-retaining sealing rings eliminate the need for an O-Ring groove, thus reducing cost.
Typical applications: Control cabinets, marine, car washes, hot tubs, instrumentation, carpet cleaning machines, food processing equipment, underground for direct burial or submersed up to 130 ft. (70 PSIG).
Ideal for corrosive environments.
Constructed from corrosion resistant 303 stainless steel.
Resistant to salt water, acids and most chemicals.
Locknuts not included.To order locknuts separately, PG Metal Locknuts.
Patent pending.
DFARS Compliant

Material		303 Stainless Steel Body and sealing nut with nylon 6/6 and TPE co-molded finger/gland assembly SBR Sealing Washer
Certifications		Listed under Underwriters’ Laboratories File E51579
Certifications		Recognized under Underwriters’ Laboratories File E51579
Flammability Rating		94V-2
Temperature Range		-40°F (-40°C) to 221°F (105°C)
IP Rating		IP 68 (70 PSI, 5 BAR)

HEYbrid™ Stainless Steel Liquid Tight Cordgrips – PG Hubs
