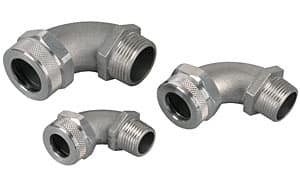

Heyco®-Tite Aluminum Liquid Tight Cordgrips – Right Angle

The Ultimate in Liquid Tight Strain Relief Protection Sweep Design
Download Datasheet
Specifications

Part number and specification

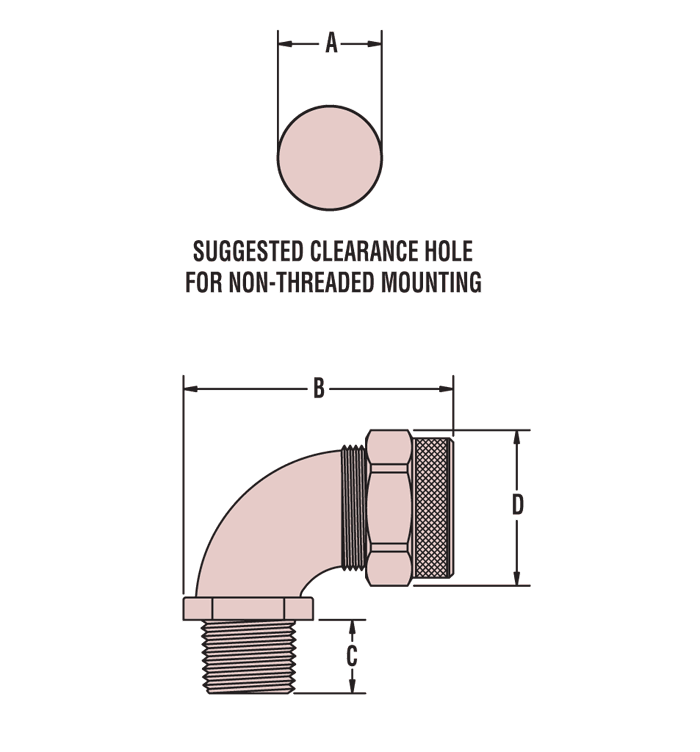

CABLE DIA. RANGE PART NO. THREAD SIZE ul PART DIMENSIONS CAD
Minimum Maximum Cast Aluminum A Clearance Hole Dia. B Max. O.A. Length C Thread Length D Wrenching Flat Size
in. mm. in. mm. in. mm. in. mm. in. mm. in. mm.
.125 3,2 .188 4,8 M5230 NPT 3/8 ul .68 17,3 2.00 50,8 .44 11,2 .88 23,4 CAD
.188 4,8 .250 6,4 M5231 CAD
.250 6,4 .312 7,9 M5232 CAD
.312 7,9 .375 9,5 M5233 CAD
.375 9,5 .438 11,1 M5234 CAD
.125 3,2 .188 4,8 M5235 NPT 1/2 ul .88 22,3 2.39 60,7 .56 14,2 1.13 28,7 CAD
.188 4,8 .250 6,4 M5236 CAD
.250 6,4 .312 7,9 M5237 CAD
.312 7,9 .375 9,5 M5238 CAD
.375 9,5 .438 11,1 M5239 CAD
.438 11,1 .500 12,7 M5240 CAD
.500 12,7 .562 14,3 M5241 CAD
.562 14,3 .625 15,9 M5242 CAD
.438 11,1 .500 12,7 M5243 NPT 3/4 ul 1.09 27,7 2.88 73,2 .59 15,0 1.37 31,8 CAD
.500 12,7 .562 14,3 M5244 CAD
.500 12,7 .625 15,9 M5245 CAD
.562 14,3 .688 17,5 M5246 CAD
.625 15,9 .750 19,1 M5247 CAD
.688 17,5 .812 20,6 M5248 CAD
.500 12,7 .562 14,3 M5249 NPT 1 ul 1.38 35,0 3.13 79,5 .60 15,2 1.56 39,6 CAD
.500 12,7 .625 15,9 M5250 CAD
.562 14,3 .688 17,5 M5251 CAD
.625 15,9 .750 19,1 M5252 CAD
.688 17,5 .812 20,6 M5253 CAD
.750 19,1 .875 22,2 M5254 CAD
.812 20,6 .938 23,8 M5255 CAD
.875 22,2 1.000 25,4 M5256
O-ring not included - See Heyco catalog or Sealing Washers, Foam Washers & Thermoplastic O-rings. Locknut not included - see NPT Metal Locknuts.



Features

  • Aluminum construction provides excellent durability and performance for most industrial applications.
  • For use in both indoor and outdoor applications to prevent cable pull-out, control arc of bend, and to provide a tight seal against environmental elements such as dirt, moisture, and coolants.
  • IP 67 rated.
  • Protect cable from damage and pull-out and are used in conduit hubs or knock-outs at the point where the electrical cable is to be terminated.
  • Unique design with a combination tightening surface that includes both a hex area and a knurled surface.
  • Anti-friction washer allows for easier compression.
  • DFARS Compliant

QuickSpecs

Material Aluminum with Neoprene Sealing Gland
and Viton® O-Ring
Certifications ul Listed under Underwriters’ Laboratories File E51579
CSA logo Certified by Canadian Standard Association File 258093
Flammability Rating 94V-2
Temperature Range -40°F (-40°C) to 250°F (121°C)
IP Rating IP 67
