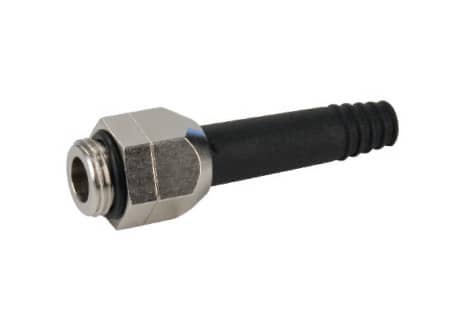

Heyco®-Tite Brass Lazy Bend Liquid Tight Cordgrips EPDM Nozzle

EPDM Nozzle – Metric Hubs The Ultimate in Liquid Tight Strain Relief Protection

Specifications

Part number and specification

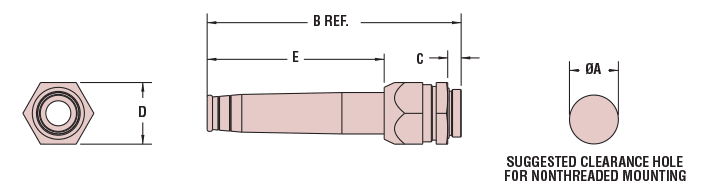

CABLE DIAMETER RANGE				PART NO.	THREAD SIZE	PART DIMENSIONS
Minimum		Maximum				A Clearance Hole Dia.		B Max. O.A. Length		C Thread Length		D Wrenching Flat Size		E Lazy Bend Nozzle Lg
in.	mm.	in.	mm.			in.	mm.	in.	mm.	in.	mm.	in.	mm.	in.	mm.
.150	3,8	.189	4,8	14670	M8 x 1.25	.315	8,0	1.69	43,0	.24	6,0	.43	11,0	.98	25,0
.157	4,0	.236	6,0	14671	M10 x 1.5	.394	10,0	2.40	61,0	.24	6,0	.63	16,0	1.38	35,0
.157	4,0	.236	6,0	14672	M12 x 1.5	.472	12,0	2.40	61,0	.24	6,0	.63	16,0	1.38	35,0
.236	6,0	.346	8,8	14673	M16 x 1.5	.630	16,0	2.95	75,0	.24	6,0	.79	20,0	1.77	45,0
.354	9,0	.433	11,0	14674	M20 x 1.5	.787	20,0	3.90	99,0	.24	6,0	.94	24,0	2.56	65,0
.413	10,5	.512	13,0	14675	M20 x 1.5	.787	20,0	4.29	109,0	.24	6,0	.94	24,0	2.87	73,0
.512	13,0	.650	16,5	14676	M25 x 1.5	.984	25,0	5.20	132,0	.28	7,0	1.26	32,0	3.62	90,0

EPDM Nozzle eases the cable into a lazy bend; prevents sharp bending and assures longest cable and product life.
Adds reliability, longevity, and safety to your application.
Protects the lifeline of your electric/electronic products by absorbing the forces of pull, push, twist and flex.
Securely anchors, insulates, and protects cables at panel entry points.
DFARS Compliant

Material	Nickel-Plated Brass with NBR Sealing Gland and O-Ring and EPDM Nozzle
Temperature Range	-40°F (-40°C) to 212°F (100°C)
IP Rating	IP 68, IP 69K
