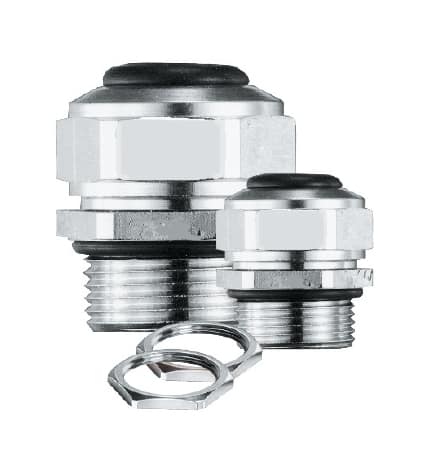

Heyco®-Tite Brass Liquid Tight Cordgrips – Metric Hubs

Straight-Thru, Metric Hubs The Ultimate in Liquid Tight Strain Relief Protection
Download Datasheet
Specifications

Part number and specification

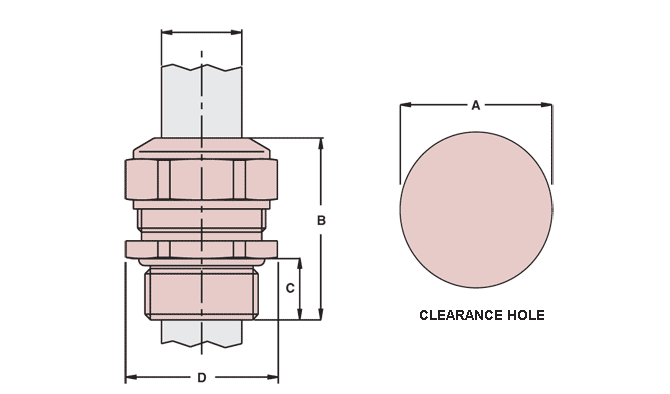

CABLE DIA. RANGE PART NO. Thread Size qs_culus or cruus PART DIMENSIONS CAD
Minimum Maximum A Clearance Hole Dia. B Max. O.A. Length C Thread Length D Wrenching Nut Flat Size
in. mm. in. mm. in. mm. in. mm. in. mm. in. mm.

Standard Thread
.079 2,0 .098 2,5 4500 M6 x 1 cruus .236 6,0 .79 20,0 .32 8,0 .32 8,0 CAD
.098 2,5 .118 3,0 4501 CAD
.118 3,0 .138 3,5 4502 CAD
.098 2,5 .138 3,5 4503 M8 x 1,25 cruus .315 8,0 .94 24,0 .39 10,0 .43 11,0 CAD
.138 3,5 .197 5,0 4504 CAD
.118 3,0 .157 4,0 4505 M10 x 1,5 cruus .394 10,0 .98 25,0 .39 10,0 .51 13,0 CAD
.157 4,0 .236 6,0 4506 CAD
.138 3,5 .197 5,0 4507 M12 x 1,5 cruus .472 12,0 1.06 27,0 .39 10,0 .59 15,0 CAD
.197 5,0 .256 6,5 4508 CAD
.256 6,5 .315 8,0 4509 CAD
.138 3,5 .177 4,5 4510 M16 x 1,5 cruus .630 16,0 1.18 30,0 .39 10,0 .71 18,0 CAD
.177 4,5 .236 6,0 4511 CAD
.236 6,0 .315 8,0 4512 CAD
.315 8,0 .413 10,5 4513 M16 x 1,5 cruus 630 16,0 1.26 32,0 CAD
.236 6,0 .315 8,0 4514 M20 x 1,5 qs_culus .787 20,0 1.22 31,0 .39 10,0 .94 24,0 CAD
.315 8,0 .433 11,0 4515 CAD
.433 11,0 .591 15,0 4516 M20 x 1,5 qs_culus .787 20,0 1.30 33,0 CAD
.374 9,5 .492 12,5 4517 M25 x 1,5 qs_culus .984 25,0 1.42 36,0 .43 11,0 1.18 30,0 CAD
.492 12,5 .630 16,0 4518 M25 x 1,5 qs_culus .984 25,0 1.50 38,0 CAD
.630 16,0 .807 20,5 4519 M25 x 1,5 qs_culus .984 25,0 1.54 39,0 CAD
.551 14,0 .669 17,0 4520 M32 x 1,5 qs_culus 1.260 32,0 1.61 41,0 .51 13,0 1.42 36,0 CAD
.669 17,0 .827 21,0 4521 CAD
.827 21,0 1.003 25,5 4522 CAD
.787 20,0 .945 24,0 4523 M40 x 1,5 qs_culus 1.574 40,0 1.73 44,0 .51 13,0 1.81 46,0 CAD
.945 24,0 1.122 28,5 4524 CAD
1.122 28,5 1.299 33,0 4525 CAD
1.142 29,0 1.299 33,0 4526 M50 x 1,5 qs_culus 1.968 50,0 1.89 48,0 .55 14,0 2.17 55,0 CAD
1.299 33,0 1.457 37,0 4527 CAD
1.457 37,0 1.654 42,0 4528 CAD

Standard Thread, High Temperature*
.630 16,0 .807 20,5 4612 M25 x 1,5 qs_culus .984 25,0 1.54 39,0 .43 11,0 1.18 30,0 CAD

Short Thread
.079 2,0 .098 2,5 14500 M6 x 1 cruus .236 6,0 .67 17,0 .20 5,0 .32 8,0
.098 2,5 .118 3,0 14501
.118 3,0 .138 3,5 14502
.098 2,5 .138 3,5 14503 M8 x 1,25 cruus .315 8,0 .75 19,0 .20 5,0 .43 11,0
.138 3,5 .197 5,0 14504
.118 3,0 .157 4,0 14505 M10 x 1,5 cruus .394 10,0 .79 20,0 .20 5,0 .51 13,0 CAD
.157 4,0 .236 6,0 14506 CAD
.138 3,5 .197 5,0 14507 M12 x 1,5 cruus .472 12,0 .87 22,0 .20 5,0 .59 15,0 CAD
.197 5,0 .256 6,5 14508 CAD
.256 6,5 .315 8,0 14509 CAD
.138 3,5 .177 4,5 14510 M16 x 1,5 cruus .630 16,0 .98 25,0 .20 5,0 .71 18,0 CAD
.177 4,5 .236 6,0 14511 CAD
.236 6,0 .315 8,0 14512 CAD
.315 8,0 .413 10,5 14513 M16 x 1,5 cruus .630 16,0 1.06 27,0 CAD
.236 6,0 .315 8,0 14514 M20 x 1,5 qs_culus .787 20,0 1.06 27,0 .24 6,0 .94 24,0 CAD
.315 8,0 .433 11,0 14515 CAD
.433 11,0 .591 15,0 14516 M20 x 1,5 qs_culus .787 20,0 1.14 29,0 CAD
.374 9,5 .492 12,5 14517 M25 x 1,5 qs_culus .984 25,0 1.26 32,0 .28 7,0 1.18 30,0 CAD
.492 12,5 .630 16,0 14518 M25 x 1,5 qs_culus .984 25,0 1.34 34,0 CAD
.630 16,0 .807 20,5 14519 M25 x 1,5 qs_culus .984 25,0 1.38 35,0 CAD
.551 14,0 .669 17,0 14520 M32 x 1,5 qs_culus 1.260 32,0 1.42 36,0 .31 8,0 1.42 36,0 CAD
.669 17,0 .827 21,0 14521 CAD
.827 21,0 1.003 25,5 14522 CAD

Short Thread, High Temperature*
.240 6,1 .413 10,5 4696 M16 x 1,5 cruus .629 16,0 1.06 27,0 .20 5,0 .71 18,0
.315 8,0 .591 15,0 4699 M20 x 1,5 qs_culus .787 20,0 1.14 29,0 .24 6,0 .94 24,0 CAD
*Special sealing gland rated to 200°C (392°F). Consult Heyco for other High Temperature rated sizes.



Features

  • Nickel plated brass construction for superior protection of flexible cables.
  • Nickel-plated finish over brass provides excellent corrosion resistance and durability.
  • IP 68 rated.
  • For use in clearance or threaded holes.
  • Meets the New European standard EN 50262 version A for metric cordgrips.
  • Long metric threads provide additional threads for easy locknut assembly.
  • Multiple sizes for flexible cord diameters ranging from .079″ (2,0 mm) to 1.654″ (42,0 mm).
  • We recommend using the smallest cordgrip that accommodates your cable size.
  • Sealing gland is molded in Thermoplastic Polymer Elastomer (TPE) Material.
  • Locknuts not included. For metal locknut specifications or to order locknuts separately, see: NPT, PG, or Metric.
  • DFARS Compliant

QuickSpecs

Material Nickel-Plated Brass w/TPE Sealing Gland
Certifications culus Certified by UL for Compliance with both Canadian and U.S. requirements under File E51579
RU logo Recognized under the Component Program of Underwriters’ Laboratories File E51579 to both Canadian and U.S. requirements
Temperature Range -40°F (-40°C) to 212°F (100°C)
IP Rating IP 68, IP 69K
