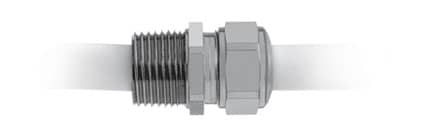

Heyco®-Tite Brass Liquid Tight Cordgrips - NPT Hubs, High Temperature

Part number and specification

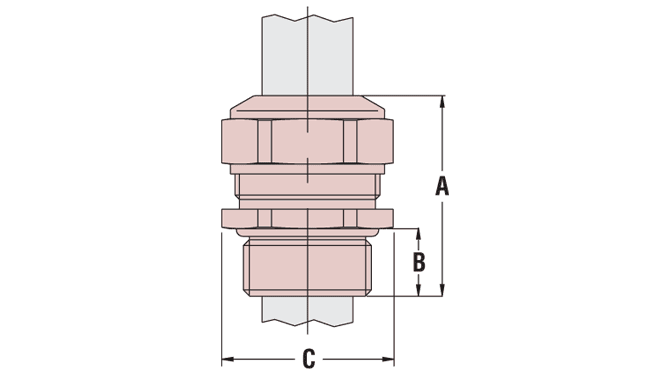

CABLE DIAMETER RANGE				PART NO.	THREAD SIZE *	PART DIMENSIONS
Minimum		Maximum				A Max. O.A. Length		B Thread Length		C Wrenching Flat Size
in.	mm.	in.	mm.			in.	mm.	in.	mm.	in.	mm.
.118	3,0	.157	4,0	14890	NPT 1/8	.905	23,0	.315	8,0	.512	13,0
.157	4,0	.236	6,0	14891	NPT 1/8	.905	23,0	.315	8,0	.512	13,0
.138	3,5	.197	5,0	14892	NPT 1/4	1.142	29,0	.472	12,0	.591	15,0
.197	5,0	.256	6,5	14893
.256	6,5	.315	8,0	14894
.236	6,0	.413	10,5	14895	NPT 3/8	1.260	32,0	.472	12,0	.709	18,0
.315	8,0	.591	15,0	14896	NPT 1/2	1.417	36,0	.590	15,0	.945	24,0
.492	12,5	.807	20,5	14897	NPT 3/4	1.575	40,0	.590	15,0	1.811	30,0
.669	17,0	1.004	250,5	14898	NPT 1	1.890	48,0	.787	20,0	1.417	36,0
.945	24,0	1.122	28,5	14899	NPT 1-1/4	2.008	51,0	.787	20,0	1.811	46,0
1.299	33,0	1.614	41,0	14900	NPT 1-1/2	2.205	56,0	.866	22,0	2.165	55,0
1.575	40,0	2.047	52,0	14901	NPT 2	2.323	59,0	.866	22,0	2.756	70,0

*Tapped hole required to maintain ratings. Standard NPT K/O hole can be used only if sealing is not required.

Features

Nickel plated brass construction for superior protection of flexible cables.
Nickel-plated finish over brass provides excellent corrosion resistance and durability.
IP 68/ IP 69K rated.
For use in threaded holes.
Multiple sizes for flexible cord diameters ranging from .118″ (3,0 mm) to 2.047″ (52,0 mm).
We recommend using the smallest cordgrip that accommodates your cable size.
Sealing gland is molded in Fluorine Rubber (FPM) Material which provides great heat resistance.
DFARS Compliant
Strain relief: Version A acc. to EN 62444

Material	Nickel plated brass w/ FPM (viton) gland
Temperature Range	-40°F (-40°C) to 392°F (200°C)
IP Rating	IP 68, IP 69K

Heyco®-Tite Brass Liquid Tight Cordgrips – NPT Hubs, High Temperature
