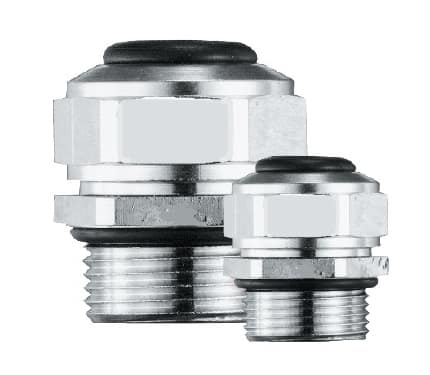

Heyco®-Tite Brass Liquid Tight Cordgrips - PG Hubs

Part number and specification

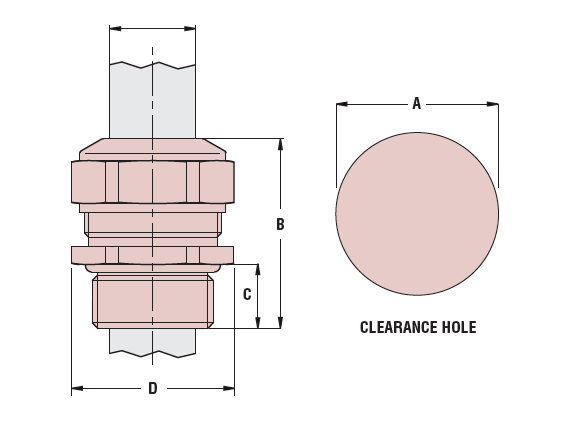

CABLE DIA. RANGE				PART NO.	Thread Size	PART DIMENSIONS
CABLE DIA. RANGE						A Clearance Hole Dia.		B Max. O.A. Length		C Thread Length		D Wrenching Nut Flat Size
Minimum		Maximum				A Clearance Hole Dia.		B Max. O.A. Length		C Thread Length		D Wrenching Nut Flat Size
in.	mm.	in.	mm.			in.	mm.	in.	mm.	in.	mm.	in.	mm.
Standard Thread
.138	3,5	.197	5,0	4530	PG 7	.492	12.5	1.063	27,0	.39	10,0	.59	15,0
.197	5,0	.256	6,5	4531
.256	6,5	.315	8,0	4532
.138	3,5	.177	4,5	4533	PG 9	.598	15,2	1.18	30,0	.39	10,0	.71	18,0
.177	4,5	.236	6,0	4534
.236	6,0	.315	8,0	4535
.315	8,0	.413	10,5	4536	PG 9	.598	15,2	1.26	32,0
.157	4,0	.217	5,5	4537	PG 11	.732	18,6	1.22	31,0	.39	10,0	.83	21,0
.217	5,5	.335	8,5	4538
.335	8,5	.472	12,0	4539
.236	6,0	.315	8,0	4540	PG 13.5	.827	21,0	1.22	31,0	.39	10,0	.94	24,0
.315	8,0	.433	11,0	4541	PG 13.5	.827	21,0	1.22	31,0
.433	11,0	.591	15,0	4542	PG 13.5	.803	20,4	1.30	33,0
.236	6,0	.315	8,0	4543	PG 16	.886	22,5	1.30	33,0	.39	10,0	.94	24,0
.315	8,0	.433	11,0	4544
.433	11,0	.591	15,0	4545
.374	9,5	.492	12,5	4546	PG 21	1.114	28,3	1.57	40,0	.47	12,0	1.18	30,0
.492	12,5	.630	16,0	4547
.630	16,0	.807	20,5	4548
.630	16,0	.748	19,0	4549	PG 29	1.469	37,3	1.57	40,0	.47	12,0	1.50	38,0
.748	19,0	.905	23,0	4550
.906	23,0	1.083	27,5	4551
.846	21,5	1.024	26,0	4552	PG 36	1.874	47,6	1.85	47,0	.59	15,0	1.97	50,0
1.024	26,0	1.201	30,5	4553
1.201	30,5	1.378	35,0	4554
Short Thread
.138	3,5	.197	5,0	14530	PG 7	.492	12.5	.91	23,0	.24	6,0	.59	15,0
.197	5,0	.256	6,5	14531
.256	6,5	.315	8,0	14532
.177	4,5	.236	6,0	14534	PG 9	.598	15,2	1.02	26,0	.24	6,0	.71	18,0
.236	6,0	.315	8,0	14535	PG 9	.598	15,2	1.02	26,0
.315	8,0	.413	10,5	14536	PG 9	.598	15,2	1.10	28,0
.157	4,0	.217	5,5	14537	PG 11	.732	18,6	1.06	27,0	.24	6,0	.83	21,0
.217	5,5	.335	8,5	14538
.335	8,5	.472	12,0	14539
.236	6,0	.315	8,0	14540	PG 13.5	.803	20,4	1.06	27,0	.24	6,0	.94	24,0
.315	8,0	.433	11,0	14541	PG 13.5	.803	20,4	1.06	27,0
.433	11,0	.591	15,0	14542	PG 13.5	.803	20,4	1.14	29,0
.236	6,0	.315	8,0	14543	PG 16	.886	22,5	1.14	29,0	.24	6,0	.94	24,0
.315	8,0	.433	11,0	14544
.433	11,0	.591	15,0	14545
.374	9,5	.492	12,5	14546	PG 21	1.114	28,3	1.40	35,5	.30	7,5	1.18	30,0
.492	12,5	.630	16,0	14547
.630	16,0	.807	20,5	14548
.748	19,0	.906	23,0	14550	PG 29	1.469	37,3	1.42	36,0	.32	8,0	1.50	38,0
.906	23,0	1.083	27,5	14551	PG 29	1.469	37,3	1.42	36,0	.32	8,0	1.50	38,0
1.024	26,0	1.201	30,5	14553	PG 36	1.874	47,6	1.85	47,0	.32	8,0	1.97	50,0
1.201	30,5	1.378	35,0	14554	PG 36	1.874	47,6	1.85	47,0	.32	8,0	1.97	50,0

Features

Nickel plated brass construction for superior protection of flexible cables.
Nickel-plated finish over brass provides excellent corrosion resistance and durability.
IP 68 rated.
For use in clearance or threaded holes.
Long PG threads provide additional threads for easy locknut assembly.
Multiple sizes for flexible cord diameters ranging from .138″ (3,5 mm) to 1.378″ (35,0 mm).
We recommend using the smallest cordgrip that accommodates your cable size.
Sealing gland is molded in Thermoplastic Polymer Elastomer (TPE) Material.
Locknuts not included. For metal locknut specifications or to order locknuts separately, see: NPT, PG, or Metric.
DFARS Compliant

QuickSpecs

Material		Nickel-Plated Brass w/TPE Sealing Gland
Certifications		Certified by UL for Compliance with both Canadian and U.S. requirements under File E51579
Certifications		Recognized under the Component Program of Underwriters’ Laboratories File E51579 to both Canadian and U.S. requirements
Temperature Range		-40°F (-40°C) to 212°F (100°C)
IP Rating		IP 68, IP 69K
