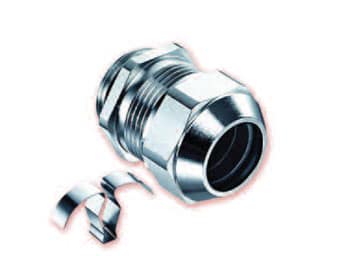

Heyco®-Tite EMC-2 Brass Liquid Tight Cordgrips

Straight-Thru, Metric Hubs EMC Nickel-Plated Brass with Contact Sleeve The Ultimate in Liquid Tight Strain Relief Protection
Specifications

Part number and specification


CABLE DIA. RANGE PART NO. Thread Size qs_culus or cruus PART DIMENSIONS CAD

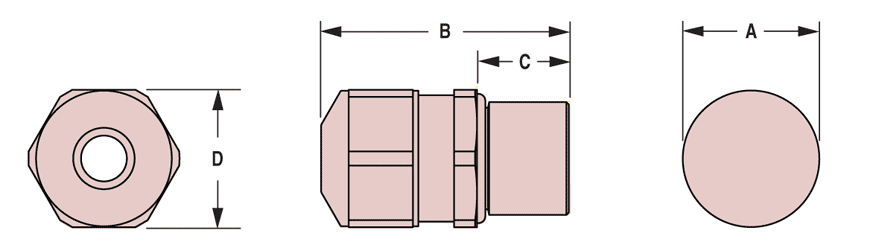

A Clearance Hole Dia. B Max. O.A. Length C Thread Length D Wrenching Nut Flat Size
Minimum Maximum
in. mm. in. mm. in. mm. in. mm. in. mm. in. mm.

Standard Thread

.138 3,5 .197 5,0 4594 M12 x 1,5 cruus .472 12,0 1.26 32,0 .39 10,0 .59 15,0 CAD
.197 5,0 .256 6,5 4595 CAD
.236 6,0 .413 10,5 4596 M16 x 1,5 cruus .643 16,0 1.38 35,0 .39 10,0 .71 18,0 CAD
.315 8,0 .591 15,0 4597 M20 x 1,5 cruus .787 20,0 1.46 37,0 .39 10,0 .94 24,0 CAD
.492 12,5 .807 20,5 4598 M25 x 1,5 cruus .984 25,0 1.73 44,0 .43 11,0 1.18 30,0 CAD
.669 17,0 1.004 25,4 4599 M32 x 1,5 cruus 1.260 32,0 1.81 46,0 .51 13,0 1.42 36,0 CAD

Short Thread

.138 3,5 .197 5,0 14594 M12 x 1,5 cruus .472 12,0 1.06 27,0 .20 5,0 .59 15,0 CAD
.197 5,0 .256 6,5 14595 CAD
.236 6,0 .413 10,5 14596 M16 x 1,5 cruus .630 16,0 1.18 30,0 .20 5,0 .71 18,0
.315 8,0 .591 15,0 14597 M20 x 1,5 cruus .787 20,0 1.30 33,0 .24 6,0 .94 24,0 CAD
.492 12,5 .807 20,5 14598 M25 x 1,5 cruus .984 25,0 1.57 40,0 .28 7,0 1.18 30,0
.669 17,0 1.004 25,5 14599 M32 x 1,5 cruus 1.260 32,0 1.61 41,0 .31 8,0 1.42 36,0



Features

  • Ideal for applications where Electromagnetic Interference (EMI) protection or Electromagnetic Compatibility (EMC) is needed.
  • Innovative contact spring, due to strong clamping, virtually guarantees a secure shielded tap connection.
  • Contact spring can be precisely positioned due to its clearly defined limit stop, making installation simple.
  • Clamping technique ensures the cable can be rotated, pushed and easily dismantled during mounting.
  • Excellent 360° shield contact with contact sleeve due to braided shield which runs into the gland.
  • Combination of the sealing insert and the contact socket guarantees a constant contact quality with minimal transfer impedance.
  • For use in clearance or threaded holes.
  • DFARS Compliant

QuickSpecs

Material Nickel-Plated Brass w/TPE Sealing Gland
Certifications culus Recognized under the Component Program of Underwriters’ Laboratories File E51579 to both Canadian and U.S. requirements
Temperature Range -40°F (-40°C) to 212°F (100°C)
IP Rating IP 68, IP 69K
