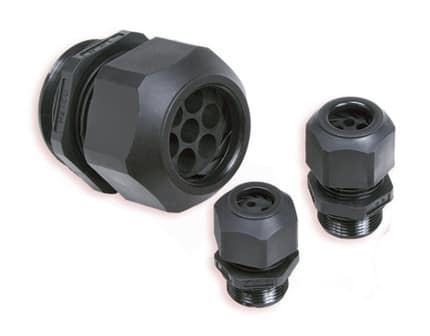

Heyco®-Tite Liquid Tight Cordgrips Multi-Hole for Smaller Conductors

Multi-Hole with Integral Sealing Ring Sequenced by Conductor Size The Ultimate in Liquid Tight Strain Relief Protection
Specifications

Part number and specification


CONDUCTORS UL logo or CRUUS NPT HUB* specifications PG HUB** specifications METRIC HUB** specifications
Hole Size mm. No. Black Part No. Desc. Black Part No. Desc. Black Part No. Desc.

Round, Open Holes - consult Heyco for Snap-In-2 Hub versions

1,4 4 M3228GAP LTCG 3/8 M3210GAP LTCG 9 M4336GAP LTCG M16
6 M3228GAZ LTCG 3/8 M3210GAZ LTCG 9 M4336GAZ LTCG M16
10 M3228GE LTCG 3/8 M3210GE LTCG 9 M4336GE LTCG M16
1,5 2 M4516GBA LTCG 1/4 M3207GBA LTCG 7 M4332GBA LTCG M12
3 - - M3213GF LTCG 11 - -
1,6 5 M3228GG LTCG 3/8 M3210GG LTCG 9 M4336GG LTCG M16
1,7 2 M3228GH LTCG 3/8 M3210GH LTCG 9 M4336GH LTCG M16
3 M3228GJ LTCG 3/8 M3210GJ LTCG 9 M4336GJ LTCG M16
4 M3228GK LTCG 3/8 M3210GK LTCG 9 M4336GK LTCG M16
2,0 3 M3231GL LTCG 1/2 M3216GL LTCG 13 M4340GL LTCG M20
2,3 4 M3228GM LTCG 3/8 M3210GM LTCG 9 M4336GM LTCG M16
2,5 2 M3231GN LTCG 1/2 M3216GN LTCG 13 M4340GN LTCG M20
2,8 4 - - M3213GAY LTCG 11 - -
3,0 2 M3228GP LTCG 3/8 M3210GP LTCG 9 M4336GP LTCG M16
- - M3213GB LTCG 11*** - -
- - M3213GP LTCG 11 - -
3 - - M3213GQ LTCG 11 - -
3 M3231GQ LTCG 1/2 M3216GQ LTCG 13 M4340GQ LTCG M20
3 M3200GQ LTCG LL 1/2 M3219GQ LTCG 16 - -
4 M3200GR LTCG LL 1/2 M3219GR LTCG 16 - -
6 M3231GS LTCG 1/2 M3216GS LTCG 13 M4340GS LTCG M20
6 M3200GS LTCG LL 1/2 M3219GS LTCG 16 - -
3,8 2 M3231GT LTCG 1/2 M3216GT LTCG 13 M4340GT LTCG M20
6 M3200GW LTCG LL 1/2 M3219GW LTCG 16 - -
4,0 2 - - M3213GAK LTCG 11 - -
3 M3231GX LTCG 1/2 M3216GX LTCG 13 M4340GX LTCG M20
3 M3200GX LTCG LL 1/2 M3219GX LTCG 16 - -
4 M3200GY LTCG LL 1/2 M3219GY LTCG 16 - -
5 M3200GZ LTCG LL 1/2 M3219GZ LTCG 16 - -
6 M3200GBB LTCG LL 1/2 M3219GBB LTCG 16 - -
Standard color black. *Locknuts not included. For Locknut specifications or to order Locknuts separately, see Nylon Locknuts: NPT, PG, or Metric and Metal Locknuts: NPT, PG, or Metric. **Unassembled Nylon Locknuts INCLUDED. ***Short Thread



Features

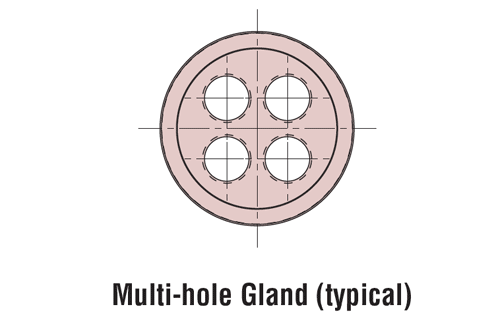

  • Heyco® Multi-hole glands provide the widest range of conductor through-hole
    size and number configurations, many of which are agency approved. See the tabular charts for specific approvals for specific parts. These approvals are not “global” or implied approvals; they are both real and part specific.
  • Integral Sealing Ring ensures a superior seal at the clearance or threaded mounting hole locaton, every time.
  • IP 68 rated.
  • Cordgrips are made of nylon construction with TPE sealing glands that resist salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents.
  • For body part dimensions see NPT, PG and Metric Cordgrips.
  • Multi-hole glands are only to be used with Heyco Liquid Tight Cordgrips and are not sold separately.
  • Consult Heyco for Cordgrips molded in other colors.

QuickSpecs

Material Nylon 6/6 w/TPE Sealing Gland
Flammability Rating 94V-2 Standard
Temperature Range Static -40°F (-40°C) to 239°F (115°C)
Dynamic -4°F (-20°C) to 212°F (100°C)
IP Rating IP 68
