Heyco®-Tite Liquid Tight Cordgrips Right Angle, NPT Hubs

Part number and specification

CABLE DIA. RANGE		PART NO.	DESCRIPTION	PART DIMENSIONS

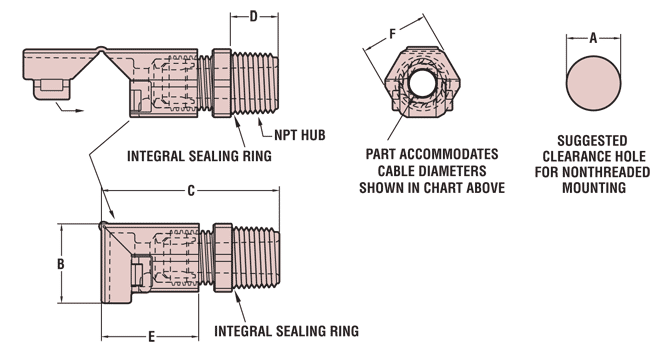

CABLE DIA. RANGE		Black		A Clearance Hole Dia.		B Right Angle Height		C Max. O.A. Length (Closed)		D Thread Length		E Sealing Nut Length		F Wrenching Nut Flat Size
in.	mm.	Black		in.	mm.	in.	mm.	in.	mm.	in.	mm.	in.	mm.	in.	mm.
.065 - .210	1,7 - 5,3	M4560	RLTCG 1/4 90	.540	13,7	.69	17,5	1.67	42,5	.45	11,4	.86	22,0	.63	16,0
.115 - .250	2,9 - 6,4	M4562	LTCG 1/4 90	.540	13,7	.69	17,5	1.67	42,5	.45	11,4	.86	22,0	.63	16,0
.065 - .230	1,7 - 5,8	M8560	RLTCG 3/8 90	.680	17,3	.88	22,3	1.93	48,9	.49	12,4	1.07	27,1	.82	20,8
.105 - .315	2,7 - 8,0	M8562	LTCG 3/8 90	.680	17,3	.88	22,3	1.93	48,9	.49	12,4	1.07	27,1	.82	20,8
.095 - .290	2,4 - 7,4	M4564	RLTCG 1/2 90	.875	22,2	1.06	26,9	2.41	61,2	.61	15,5	1.38	35,1	.98	24,9
.170 - .450	4,3 - 11,4	M8564	LTCG 1/2 90	.875	22,2	1.06	26,9	2.41	61,2	.61	15,5	1.38	35,1	.98	24,9

Standard color black.

Features

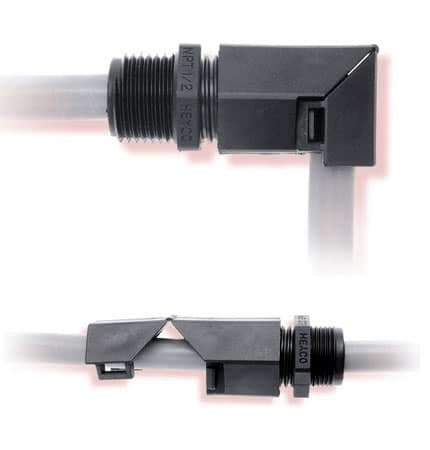

Cordgrip is molded in the open position for ease of installation. After cable insertion, the fitting snaps closed, bending the cable without damage. This assembly method saves considerable time and money.
Part design provides liquid tight integrity even in the open position.
Integral Sealing Ring ensures a superior seal at the clearance or threaded mounting hole location, every time.
Widest range of approved cable diameters.
IP 68 rated.
Approved for NEMA 4, 4X, 6 and 6P applications.
Acme threads on body prevent skipping and speed installation.
Multiple sizes for flexible cord diameters ranging from .065″ (1,7 mm) to .450″ (11,4 mm).
We recommend using the fitting with the smallest maximum diameter that will fit your application.
Patented.
Locknuts not included. For nylon locknut specifications or to order locknuts separately, see NPT Nylon Locknuts.
See Heyco Liquid Tight Threaded Plugs.
Consult Heyco for cordgrips molded in other colors.

Material		Nylon 6/6 w/TPE Sealing Gland
Certifications		Listed under Underwriters’ Laboratories File E51579
		Recognized under Components Program of Underwriters’ Laboratories File E51579
		Certified by Canadian Standard Association File 93876C
		Approved for NEMA 4, 4X, 6 and 6P applications
Flammability Rating		94V-2
Temperature Range		Static -40°F (-40°C) to 239°F (115°C) Dynamic -4°F (-20°C) to 212°F (100°C)
IP Rating		IP 68 (70 PSI, 5 BAR)
