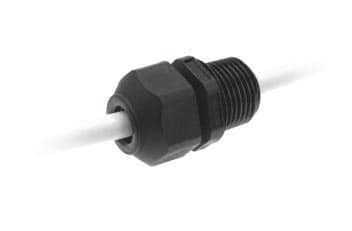

Heyco®-Tite Liquid Tight Cordgrips Straight-Thru, NPT Hubs

Part number and specification

CABLE DIA. RANGE				PART NO.		DESCRIPTION	PART DIMENSIONS

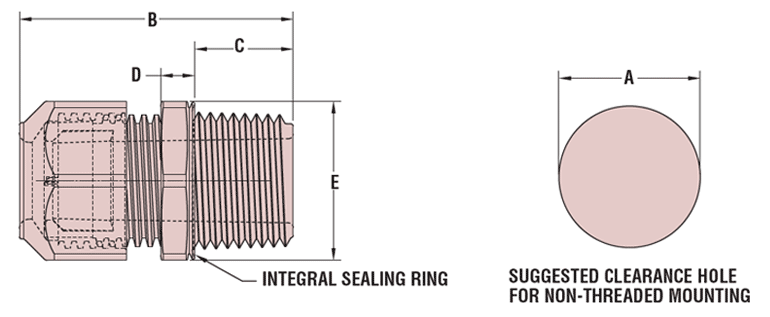

CABLE DIA. RANGE				Black	Gray		A Clearance Hole Dia.		B Max. O.A. Length		C Thread Length		D Wrenching Nut Thk.		E Wrenching Nut Flat Size
Minimum		Maximum					A Clearance Hole Dia.		B Max. O.A. Length		C Thread Length		D Wrenching Nut Thk.		E Wrenching Nut Flat Size
in.	mm.	in.	mm.				in.	mm.	in.	mm.	in.	mm.	in.	mm.	in.	mm.
.065	1,7	.210	5,3	M4514	M4515	RLTCG 1/4	.540	13,7	1.29	32,8	.45	11,4	.21	5,3	.63	16,0
.115	2,9	.250	6,4	M4516	M4517	LTCG 1/4	.540	13,7	1.29	32,8	.45	11,4	.21	5,3	.63	16,0
.065	1,7	.230	5,8	M3458	M3459	RLTCG 3/8	.680	17,3	1.41	35,8	.49	12,4	.21	5,3	.82	20,8
.105	2,7	.315	8,0	M3228	M3229	LTCG 3/8	.680	17,3	1.41	35,8	.49	12,4	.21	5,3	.82	20,8
.095	2,4	.290	7,4	M4518	M4519	RLTCG 1/2	.875	22,2	1.70	43,2	.61	15,5	.21	5,3	.98	24,9
.170	4,3	.450	11,4	M3231	M3232	LTCG 1/2	.875	22,2	1.70	43,2	.61	15,5	.21	5,3	.98	24,9
.180	4,6	.400	10,2	M4520	M4521	RLTCG LL 1/2	.875	22,2	1.68	42,7	.44	11,2	.25	6,4	1.06	26,9
.270	6,9	.545	13,8	M3200	M3201	LTCG LL 1/2	.875	22,2	1.68	42,7	.44	11,2	.25	6,4	1.06	26,9
.250	6,4	.490	12,4	M3460	M3461	RLTCG 3/4	1.109	28,2	2.00	50,8	.62	15,7	.25	6,4	1.30	33,0
.420	10,7	.630	16,0	M3234GA	M3235GA	LTCG 3/4
.435	11,0	.705	17,9	M3234	M3235	LTCG 3/4
.490	12,4	.785	19,9	M8439	M8440	RLTCG 1	1.326	33,7	2.41	61,2	.76	19,3	.30	7,6	1.73	43,9
.590	15,0	1.000	25,4	M8437	M8438	LTCG 1	1.326	33,7	2.41	61,2	.76	19,3	.30	7,6	1.73	43,9
.787	20,0	1.020	25,9	M4522	M4523	RLTCG 1-1/4	1.680	42,7	2.69	68,3	.78	19,8	.30	7,6	2.05	52,1
.875	22,2	1.260	32,0	M4524	M4525	LTCG 1-1/4	1.680	42,7	2.69	68,3	.78	19,8	.30	7,6	2.05	52,1
1.000	25,4	1.240	31,5	M3319	M3320	RLTCG 1-1/2	1.920	48,8	2.81	71,3	.77	19,6	.36	9,1	2.46	62,5
1.230	31,2	1.560	39,6	M3317	M3318	LTCG 1-1/2	1.920	48,8	2.81	71,3	.77	19,6	.36	9,1	2.46	62,5
1.160	29,5	1.350	34,3	M3323	M3324	RLTCG 2	2.400	60,8	2.93	74,3	.79	20,1	.42	10,7	2.73	69,3
1.450	36,8	1.730	43,9	M3321	M3322	LTCG 2	2.400	60,8	2.93	74,3	.79	20,1	.42	10,7	2.73	69,3

Standard colors black and gray.

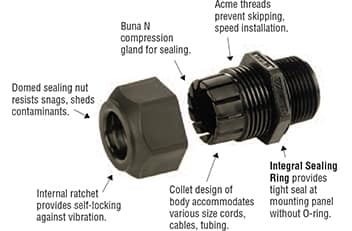

Features

Integral Sealing Ring ensures a superior seal at the clearance or threaded mounting hole location, every time.
Widest range of approved cable diameters. Cable ranges listed are for the maximum IP68 sealing range. Contact Heyco for UL approved 514B cable ranges.
IP 68 rated.
Approved for NEMA 4, 4X, 6 and 6P applications.
Ratchet design of sealing nut assembly provides superior anti-vibration protection and ensures a firm grip on the cable.
Acme threads on body prevent skipping and speed installation.
All nylon construction with Buna N sealing gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. (This feature is not assessed by UL.)
Multiple sizes for flexible cord diameters ranging from .065″ (1,7 mm) to 1.560″ (39,6 mm).
We recommend using the fitting with the smallest maximum diameter that will fit your application.
Locknuts not included. For nylon locknut specifications or to order locknuts separately, see NPT Nylon Locknuts.
See Heyco Liquid Tight Threaded Plugs.
Consult Heyco for cordgrips molded in other colors.

QuickSpecs

Material		Nylon 6/6 w/Buna N or TPE Sealing Gland
Certifications		Listed under Underwriters’ Laboratories File E51579
		Recognized under the Component Program of Underwriters’ Laboratories File E51579
		Certified by Canadian Standard Association File 93876C
		Approved for NEMA 4, 4X, 6 and 6P applications
Flammability Rating		94V-2 consult factory for V0 material
Temperature Range		Static -40°F (-40°C) to 239°F (115°C)
Temperature Range		Dynamic -4°F (-20°C) to 212°F (100°C)
IP Rating		IP 68 (70 PSI, 5 BAR)
