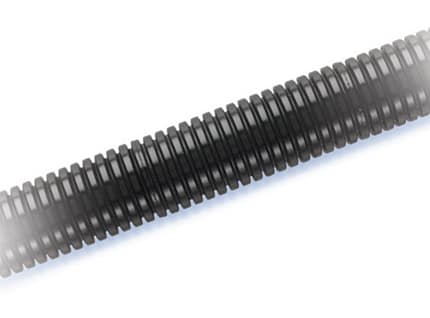

Heyco® Nylon Corrugated Conduit/Tubing – HPAS Series

Highly Flexible Polyamide Nylon 6

Specifications

Part number and specification

NOMINAL SIZE	PART NO. Black		DESCRIPTION			PART DIMENSIONS

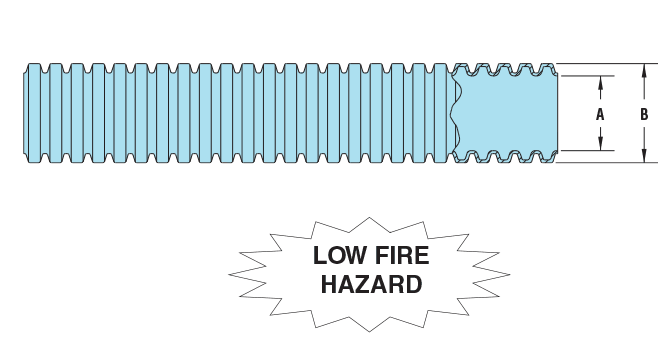

	94V-2	94V-0		Inside Bend Radius		A Inside Diameter		B Outside Diameter		Roll Length
	94V-2	94V-0		in.	mm.	in.	mm.	in.	mm.	Ft.	M.
10 mm	F8400	F8421	HPAS 10MM 50M COIL	.59	15,0	.24	6,2	.39	10,0	164	50
13 mm	F8402	F8422	HPAS 13MM 50M COIL	.79	20,0	.38	9,6	.51	13,0
16 mm	F8404	F8424	HPAS 16MM 50M COIL	1.18	30,0	.47	12,0	.62	15,8
21 mm	F8406	F8426	HPAS 21MM 50M COIL	1.57	40,0	.65	16,5	.84	21,2
28 mm	F8410	F8432	HPAS 28MM 50M COIL	2.17	55,0	.88	22,3	1.12	28,5
34 mm	F8414	F8434	HPAS 34MM 50M COIL	2.56	65,0	1.11	28,2	1.36	34,5
42 mm	F8416	F8436	HPAS 42MM 25M COIL	3.15	80,0	1.42	36,0	1.67	42,5	82	25
54 mm	F8418	F8438	HPAS 54MM 25M COIL	3.74	95,0	1.85	47,1	2.15	54,5	82	25

Standard color black. Slit version options also available.

Low fire hazard.
Low smoke and toxicity.
Halogen, sulphur, and phosphorus free.
Highly flexible and high fatigue life.
High impact strength and recovers if crushed.
Lightweight and low installed cost.
Use with Heyco Nylon Fittings: Straight-Thru, and 90° Sweep Fittings
UV resistant.
For use with all types of equipment, machinery, pumps, motors, and HVAC equipment.
10 mm thru 54 mm nominal sizes.
Highly resistant to abrasion, oil, and solvents.
Voltage Rating: 300V.
Suitable for use in outdoor locations.
Mounting clips.
Maximum flexibility, can be used in extremely tight quarters. Bend radius of HPAS Series is equal to its outside diameter.
Technical specifications.

CertificationsRecognized under Underwriters’ Laboratories File E121095 for both U.S. and Canadian requirements
