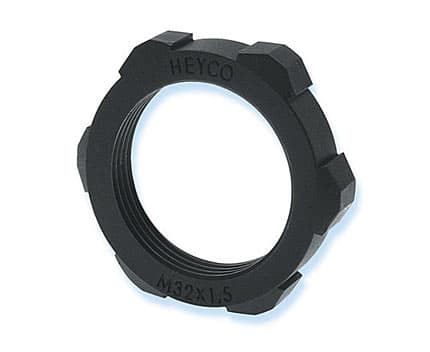

Heyco® Nylon Locknuts Metric Thread
Metric Thread

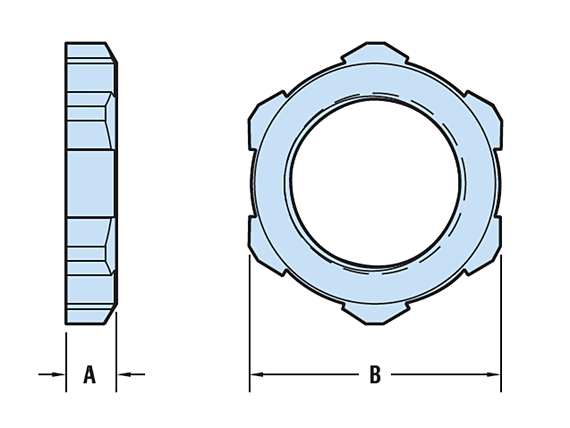

| THREAD TYPE AND SIZE | PART NO. | DESCRIPTION | PART DIMENSIONS | CAD | ||||
|---|---|---|---|---|---|---|---|---|
| Black | Gray | A Thickness | B Wrenching Flats | |||||
| in. | mm. | in. | mm. | |||||
| M12 | M9130 | M9131 | NLN M12 | .218 | 5,5 | .750 | 19,1 |  |
| M16 | M9132 | M9133 | NLN M16 | .218 | 5,5 | .870 | 22,1 | |
| M20 | M9134 | M9135 | NLN M20 | .245 | 6,2 | 1.062 | 27,0 | |
| M25 | M9136 | M9137 | NLN M25 | .281 | 7,1 | 1.378 | 35,0 | |
| M32 | M9138 | M9139 | NLN M32 | .281 | 7,1 | 1.614 | 41,0 | |
| M40 | M9140 | M9141 | NLN M40 | .281 | 7,1 | 1.968 | 50,0 | |
| M50 | M9148 | M9149 | NLN M50 | .320 | 8,1 | 2.750 | 69,9 | |
| M63 | M9154 | M9155 | NLN M63 | .375 | 9,5 | 2.850 | 72,4 | |
Flammability Rating94V-2 Standard-Consult Heyco for VO material
| Material | Nylon 6/6 |
|---|---|
| Temperature Range | -40°F (-40°C) to 221°F (105°C) |
