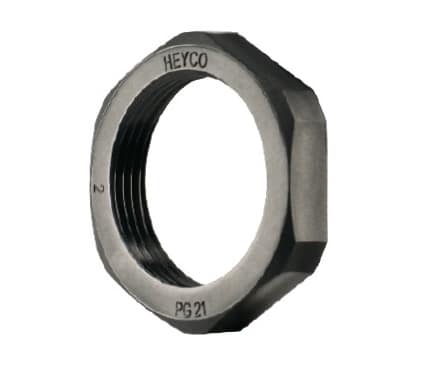

Heyco® Nylon Locknuts PG Thread
PG Thread
| THREAD TYPE AND SIZE | PART NO. | DESCRIPTION | PART DIMENSIONS | CAD | ||||
|---|---|---|---|---|---|---|---|---|

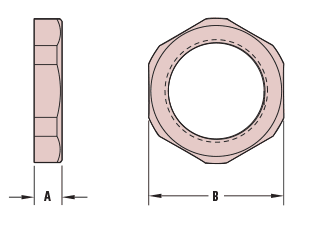

| Black | Gray | A Thickness | B Wrenching Flats | |||||
| in. | mm. | in. | mm. | |||||
| PG 7 | 3165 | 3166 | NLN PG 7 | .218 | 5,5 | .750 | 19,1 |  |
| PG 9 | 3167 | 3168 | NLN PG 9 | .218 | 5,5 | .859 | 21,8 | |
| PG 11 | 3169 | 3170 | NLN PG 11 | .218 | 5,5 | .937 | 23,8 | |
| PG 13.5 | 3171 | 3172 | NLN PG 13.5 | .250 | 6,4 | 1.062 | 27,0 | |
| PG 16 | 3173 | 3174 | NLN PG 16 | .250 | 6,4 | 1.171 | 29,7 | |
| PG 21 | 3175 | 3176 | NLN PG 21 | .281 | 7,1 | 1.406 | 35,7 | |
| PG 29 | 3177 | 3178 | NLN PG 29 | .281 | 7,1 | 1.812 | 46,0 | |
| PG 36 | M9146 | M9147 | NLN PG 36 | .281 | 7,1 | 2.244 | 56,9 | |
| PG 42 | M9152 | M9153 | NLN PG 42 | .320 | 8,1 | 2.750 | 69,9 | |
| PG 48 | M9158 | M9159 | NLN PG 48 | .375 | 9,5 | 2.835 | 72,0 | |
Flammability Rating94V-2 Standard-Consult Heyco for VO material
| Material | Nylon 6/6 |
|---|---|
| Temperature Range | -40°F (-40°C) to 221°F (105°C) |
