Heyco® Aluminum Modular Splice Block

Specifications

Part number and specification

LINE SIDE AWG	LOAD SIDE AWG	PART NO.	DESCRIPTION	AMPS per Pole	INSULATOR BLOCK

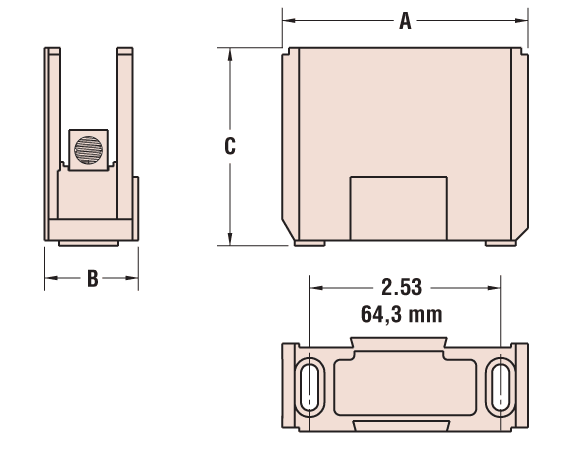

LINE SIDE AWG	LOAD SIDE AWG	PART NO.	DESCRIPTION	AMPS per Pole	Length A	Width B	Height C
2-14	2-14	S6530	MSS 14-2 1-Pole	115	2.90	1.04	2.34

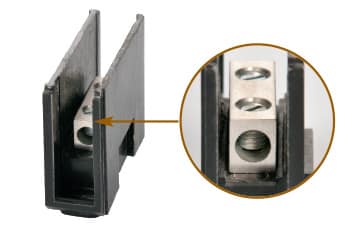

The Modular Splice Block is a modular, interlocking power splicing block.
Simply slip on and lock into place the number of poles needed for your application. Modular design reduces stocking requirements.
Made of tin plated aluminum in order to provide reliable connectors for copper or aluminum wires.
Rated for 600 Volts.
DFARS Compliant

Material		Glass-filled polyester insulator block and high strength tempered Aluminum Alloy 6061, tin plated to resist oxidation and galvanic corrosion, and with conductivity of approximately 43% IACS. Zinc plated steel screws with trivalent (Cr+3) chromate top layer.
Certifications		Recognized Component under Underwriters’ Labrotories File E197025
Certifications		Certified by the Canadian Standards Association File 8919
