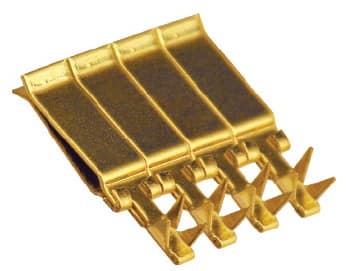

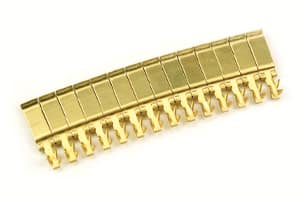

Heyco® Heavy Duty Female Blade

Specifications

Part number and specification

PART DATA			PART NO.	APPLICATION TOOLING*					PDF
Type	AWG Range	Material	PART NO.	Die**	Feeds	Tool Packs	Crimp Punch	Anvil	PDF

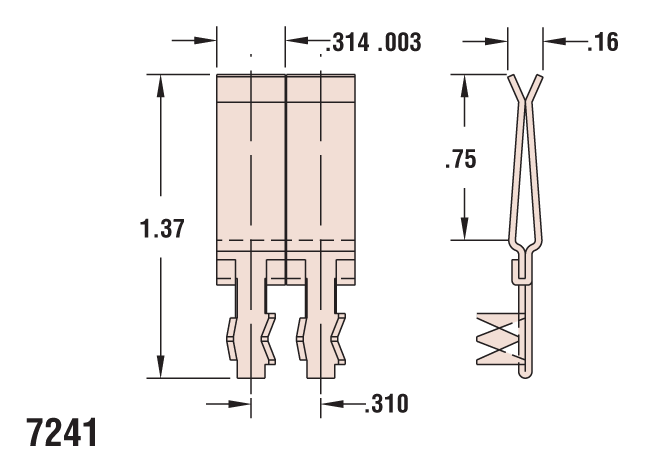

Wiping Contact	14-12	Brass	7241	7241UXX5	Left to Right	B404L/B405L	C399	C401

* Use the Heyco Universal Applicator Die (indicated by “U” in the Die Part No.), click here. ** “XX” represents Wire Gauge. Please specify Wire Gauge when ordering.

Features

Padded HD Blades (“PAD”) versus Flat HD Blades:

Flat Heavy Duty Blades are front
loaded for overmolding.
Due to their shaped profiles, Padded
Heavy Duty Blades are side loaded
for overmolding.
Heyco Heavy Duty Padded Blades are
far less expensive than their Flat counterparts, yet they are functionally equivalent and evaluated and approved by UL for use in UL 817 applications.
DFARS Compliant

QuickSpecs

Materials	Alloy 260 Brass (70% Cu, 30% Zn. Higher Cu content resists dezincification)

Competitor Cross Reference

Use our cross-reference tool to find equivalent Heyco parts that match competitor products, ensuring compatibility and performance.
