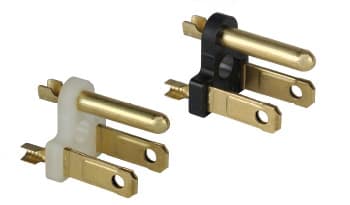

Heyco® Preassembled Cordset Components - Male Padded Bridge

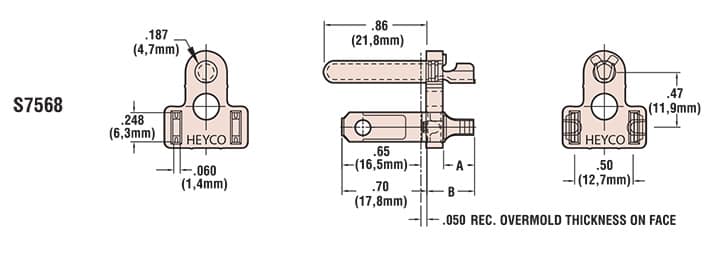

Part number and specification

PART DATA			PART NO.	APPLICATION TOOLING*				CRIMP DIMENSIONS
Type	Color	AWG Range		Die	Feeds	Crimp Punch	Anvil	A	B
Type	Color	AWG Range		Die	Feeds	Crimp Punch	Anvil	in.	in.
5-15P Male Padded Bridge	Black	18-14	S7568	Z295	Semi-Auto*	Z318, Z291	Z290	.26	.40
	Natural	18-14	S7569
	Clear	18-14	S7582
5-15P Male Padded Bridge Tinned	Black	18-14	S7586
	Natural	18-14	S7588
	Clear	18-14	S7587

Features

Male Padded Bridge—NEMA 5-15P

Heyco Padded Blades are far less expensive than their Full Thickness counterparts (Heavy Duty Male Blades, Heavy Duty Female Blades, Padded Male Blades), yet they are functionally equivalent.
Thinner gauge material lowers cost, yet full pad configuration meets UL power cord requirements, including UL 1659.
Heyco Padded Blades utilize less brass but retain all of the strength of our Full Thickness Blades, at a lower cost.
Our Padded Bridge design accommodates existing overmolds designed for Padded Blades.
Automated terminating equipment is available, click here.
Click here for wire stripper information.
DFARS Compliant

Materials		Alloy 260 Brass (70% Cu, 30% Zn. Higher Cu content resists dezincification)
Materials		Nylon 6/6
Certifications		Recognized Component under UL File E164169 (Component Blades only)
Certifications		Certified by the Canadian Standards Assocation File 91824
Standards		NEMA 5-15P
