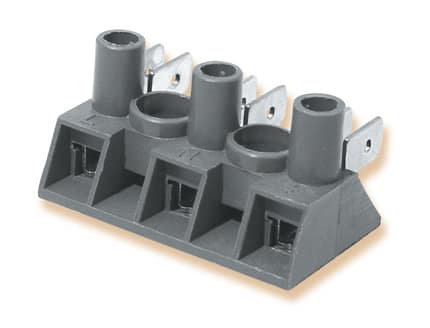

Heyco® Screw to Tab Terminal Blocks – 2 Tabs

Screw to (2) Tabs Flame Retardant and UL 94V-0

Specifications

Part number and specification

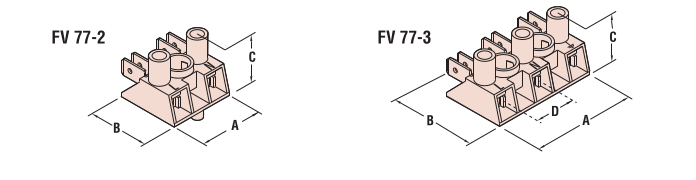

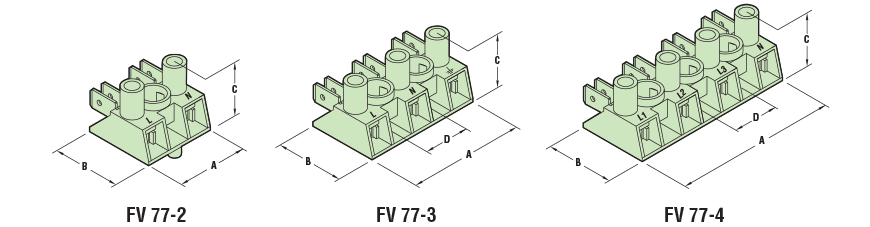

WIRE SIZE		AMPS		POLES	PART NO.	DESCRIPTION	Screws (Metric)	PART DIMENSIONS
AWG	mm²	North America	Europe		PART NO.			A		B		C		D
					Brown			A		B		C		D
					Brown			in.	mm.	in.	mm.	in.	mm.	in.	mm.
Standard
10-14	4	20	16	2	1554A	FV 77-2	M 3,5 x 7	.984	25,0	1.02	26,0	.846	21,5	N/A	N/A
10-14	4	20	16	3	1556A	FV 77-3	M 3,5 x 7	1.614	41,0	1.02	26,0	.846	21,5	.63	16,0
With Wire Protector Flap
10-14	4	20	16	2	1555A	FV 77-2 WP	M 3,5 x 7	.984	25,0	1.02	26,0	.846	21,5	N/A	N/A
10-14	4	20	16	3	1557A	FV 77-3 WP	M 3,5 x 7	1.614	41,0	1.02	26,0	.846	21,5	.63	16,0

Standard color flame retardant brown.

Affix to panel with No. 8 (M4) screws and nuts or use self tapping screws. An anti-rotation spigot is incorporated into the base.
High working temperature capability.
Available in Standard form for solid wire and Wire Protector form for stranded or solid wire.
Two .25″ by .03″ (6,3 by 0,8 mm) tabs per pole.
FV 77-2 poles are marked L and N.
FV 77-3 poles are marked L, N and .
All sizes are rated at 450 volts.
DFARS Compliant

Materials		Nylon 6/6 and galvanized steel
Certifications		Recognized Component under UL File E103541
Flammability Rating		94V-0
Temperature Range		-.4°F (-18°C) to 302°F (150°C)
