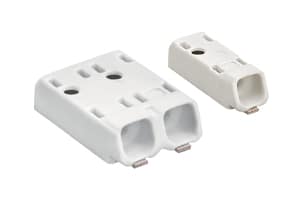

Heyco® Surface Mount Miniature Connectors

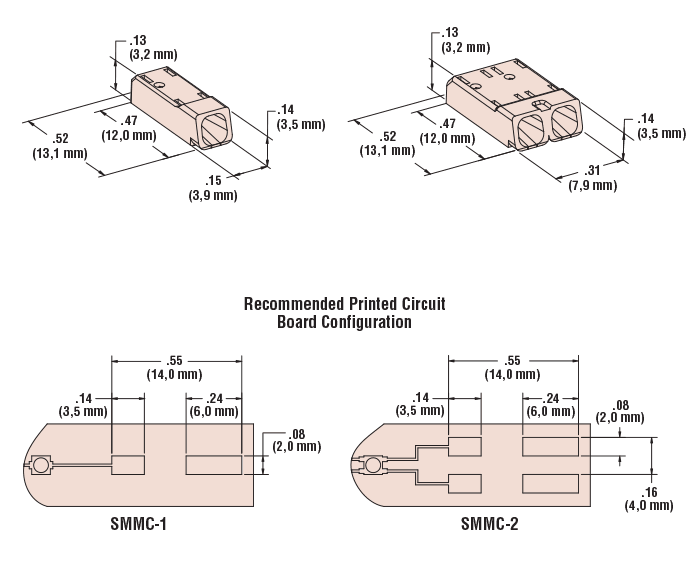

Specifications

Part number and specification

WIRE			AMPS North America	POLES	PART NO. White	Description	Pieces per Coil	Coils per Box
Size		Type
AWG	mm2	Type
SMMC Series
24	0,20-0,75	Solid or Flexible	6	1	4320	SMMC-1	2000	10
18	0,20-0,75	Solid or Flexible	6	2	4321	SMMC-2	1500	10
SMMC Release Pin Tool					0995	SMMC-T

Lowest profile – suitable for LED printed circuit boards.
Nominal voltage according to EN 60598-1:
1-Pole – 600V
2-Pole – 250V
Nominal current – 6 Amps.
Clamping Range for both solid and flexible conductors:
24-18 AWG (0,20-0,75 mm²).
Wire stripping length .315-.354″ (8-9 mm).
Maximum ambient temperature – 200°F (105°C).
Insulation distances must be considered in the specific application.
For our complete line of LED spacers see HLEDM-1, HLEDM-2, HLEDS2M & HLEDS2, HLEDS3, HLEDS1E, and HLEDS2E.

Material		GF Nylon 6/6
Certifications		Recognized under Components Program of Underwriters’ Laboratories to both Canadian and US Requirements File E467283
Flammability Rating		94V-0
Temperature Range		-4°F (-18°C) to 248°F (120°C)
