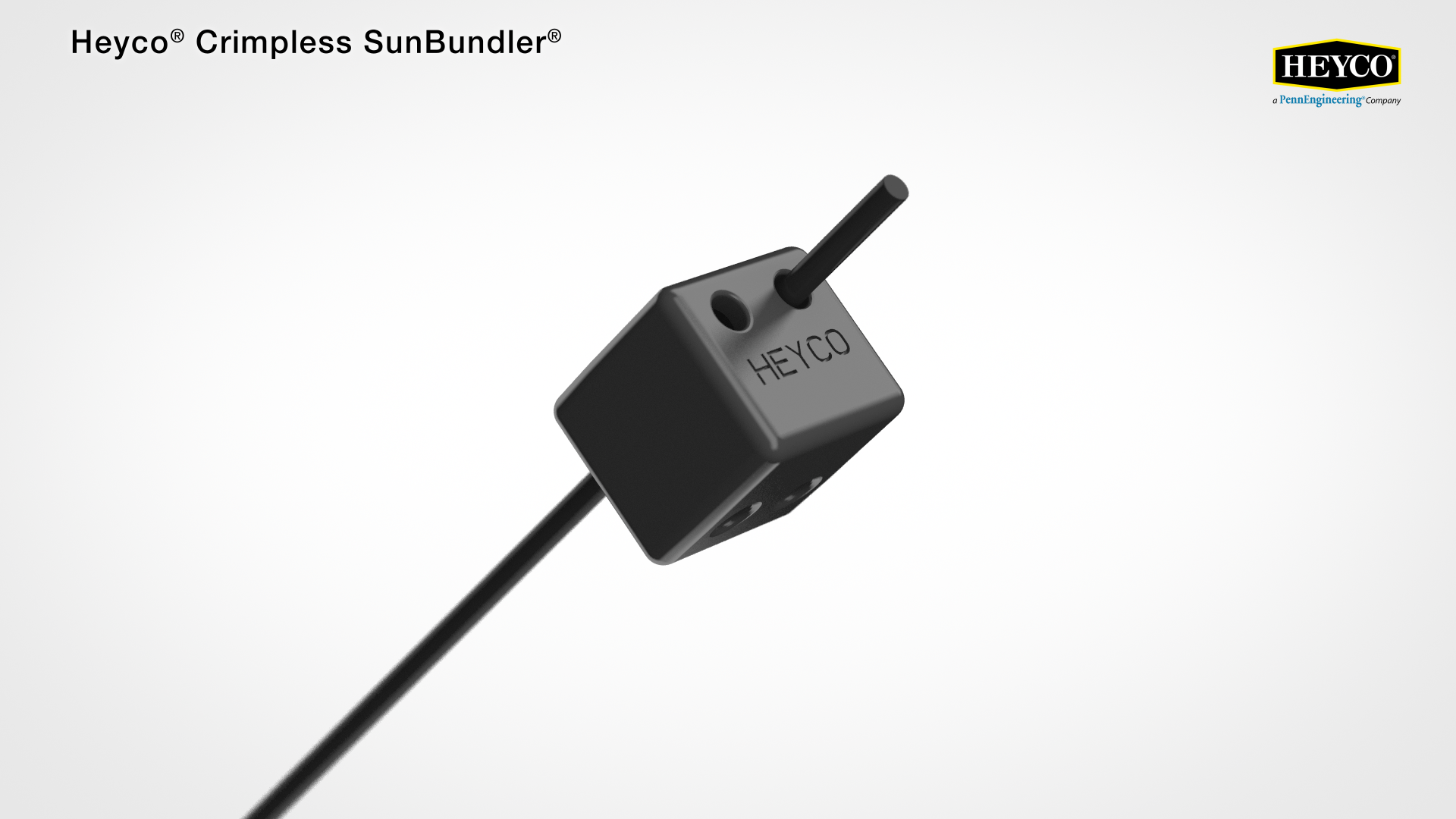

Heyco® Releasable Crimpless SunBundler®

Releasable Crimpless PVC Coated Stainless Steel Wire Cable Ties

Video may not play automatically depending on your browser settings. Please press play below if it does not.

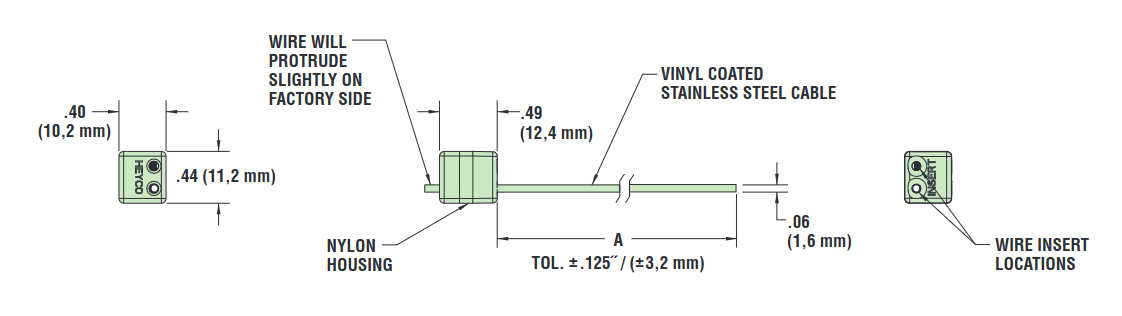

Tensile Strength		Maximum Bundle Diameter		PART NO.	DESCRIPTION	PART DIMENSION A Length
Lbs.	N	in.	mm.
				Black		Tol. ±.125 / ±3,2 mm
						in.	mm.
50	222	2.30	58,4	S6809	Crimpless SunBundler® 8	8	203
		2.95	74,2	S6811	Crimpless SunBundler® 10	10	254
		3.88	98,6	S6813	Crimpless SunBundler® 12	12	305
		4.20	106,7	S6815	Crimpless SunBundler® 14	14	356
		6.36	161,5	S6821	Crimpless SunBundler® 20	20	508
		7.32	185,9	S6825	Crimpless SunBundler® 24	24	610
		9.87	250,7	S6833	Crimpless SunBundler® 32	32	813
				S6390	Crimpless SunBundler Release Plier

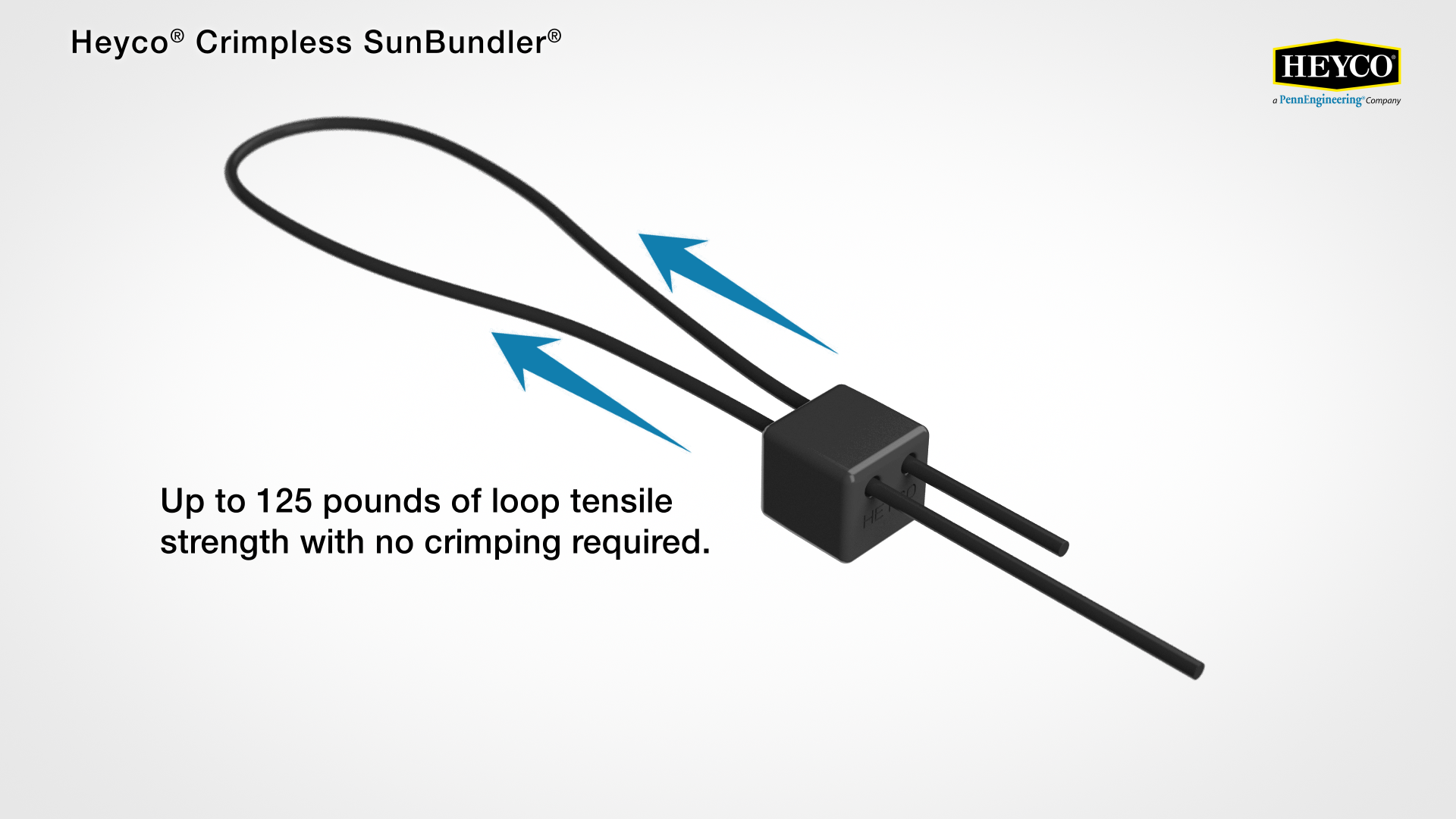

Features

Fast and easy installation
No crimping required
Crimpless design minimizes repetitive strain on the installer.
Releasable and reusable for easy repositioning during install.
Releasable and reusable for cable repair and replacement for long-term economic viability.
Cube manufactured from F1-rated Nylon 6/6. UV and heat stable for outdoor use and harsh environments.
UV protected vinyl jacket ideal for solar installation where product durability is required.
Smooth vinyl jacketing prevents damage to cable insulation.

Material	Cable Commercial Aircraft Grade 302/304 stainless wire w/UV protected vinyl jacket	Cube UV / Heat Stable Nylon 6/6
Certifications	ETL Certified to UL 62275 and UL 1565 and Type 2S
Temperature Range	-40°F (-40°C) to 221°F (105°C)
