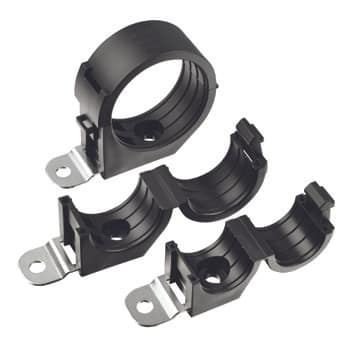

Heyco® Heavy Duty Lockit™ P Clamps

Steel Mounting Tab

Specifications

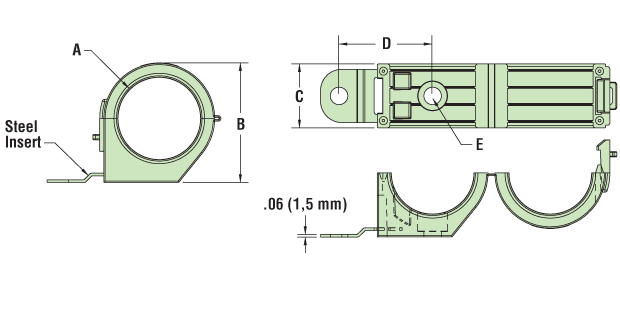

Part number and specification

MOUNTING HOLE DIA.		MAX BUNDLE DIA. A		PART NO.		DESCRIPTION	PART DIMENSIONS
MOUNTING HOLE DIA.		MAX BUNDLE DIA. A		Black Zinc Plated Steel Insert	Black 304 Stainless Steel Insert		Overall Height B		Overall Width C		Mounting Center to Center D		Counterbore Dia. E
in.	mm.	in.	mm.	Black Zinc Plated Steel Insert	Black 304 Stainless Steel Insert		in.	mm.	in.	mm.	in.	mm.	in.	mm.
0.41	10,4	1.5	38,1	15474B	25474B	HDLCC 1500-410	2.3	57,4	1.5	38,1	1.90	48,3	0.82	20,8
		2.0	50,8	15478B	25478B	HDLCC 2000-410	2.8	71,6			2.19	55,6	0.70	17,8
		3.0	76,2	15482B	25482B	HDLCC 3000-410	3.8	97,3			2.68	68,1	0.82	20,8

Available in three different sizes to accommodate a variety of cables ranging from 1.5″ to 3″ in diameter.
Unique design allows for installation of Heavy Duty Lockit P Clamps to be independent of cable installation.
Release feature allows for serviceability or field maintenance.
Inner diameter ribs offer some axial retention.
Steel mounting tab provides reliable, long-lasting hold in harsh environments.
Steel Tab Accepts maximum screw size of 3/8″.
Extra mounting hole inside of clamp provides anti-rotational benefit.
Anti-rotation hole accepts maximum screw size of 3/8″, except for HDLCC 2000, which accepts 5/16″

Material	Nylon 6/6 with Zinc Plated Steel Insert or 304 Stainless Steel Insert
Flammability Rating	UL 94V2
Temperature Range	32°F (0°C) to 221°F (105°C)
