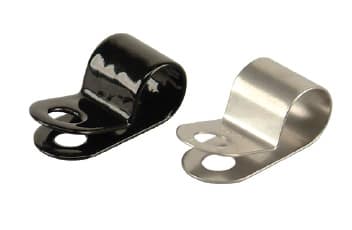

Heyco® SunClamp® Stainless Steel Cable Clamps

Part number and specification

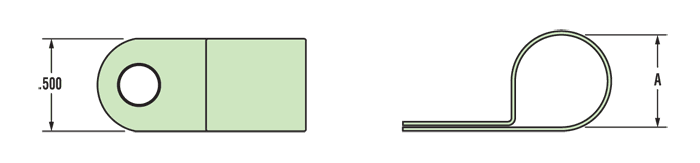

MOUNTING HOLE DIAMETER		SCREW SIZE	PART DIMENSION A		PART NO.	DESCRIPTION
in.	mm.	SCREW SIZE	in.	mm.	PART NO.	DESCRIPTION
Standard - "P Clamp" Design
.203	5,2	10	.19	4,7	S3373	CC H 3/16 SS
			.25	6,3	S3374	CC H 1/4 SS
			.38	9,5	S3376	CC H 3/8 SS
			.50	12,7	S3378	CC H 1/2 SS
			.63	15,9	S3380	CC H 5/8 SS
			.75	19,1	S3382	CC H 3/4 SS
			.88	22,2	S3384	CC H 7/8 SS
Standard - Coated
.203	5,2	10	.19	4,7	S3323	CC H 3/16 SSC
			.25	6,3	S3324	CC H 1/4 SSC
			.38	9,5	S3326	CC H 3/8 SSC
			.50	12,7	S3328	CC H 1/2 SSC
			.63	15,9	S3330	CC H 5/8 SSC
			.75	19,1	S3332	CC H 3/4 SSC
			.88	22,2	S3334	CC H 7/8 SSC

Features

For clamping cable or tubing securely into place, especially in harsh environments.
Smooth “coined” clamp edges prevent damage to cable insulation.
Constructed from corrosion resistant 304 stainless steel.
Insulated parts are constructed from 304 stainless steel and coated with polyolefin, a thermoplastic co-polymer that provides a durable non-toxic, odorless coating that has very good low temperature flexibility and excellent electrical properties. This coating also has FDA food contact approval.
Consult Heyco for larger sizes.
Not for use in a marine salt water environment. Contact Heyco for alternative materials.
All parts require a .203″ (5,2 mm) mounting hole suitable for a #10 screw.
DFARS Compliant

Material	304 stainless steel
Temperature Range	0°C (32°F) to 60°C (140°F)
