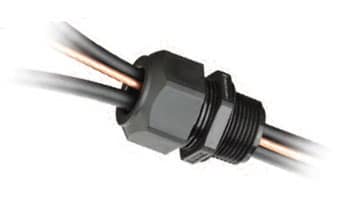

Heyco®-Tite Liquid Tight Cordgrips for Enphase Q Cables

Straight-Thru, NPT Hubs with Integral Sealing Ring The Ultimate in Liquid Tight Strain Relief Protection
Specifications

Part number and specification

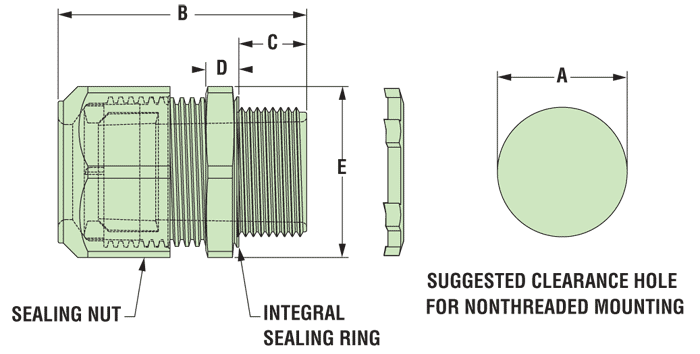

GLAND CONFIGURATION Conductors PART NO. DESCRIPTION /sa or PART DIMENSIONS
Type Size No. Black A Clearance Hole Dia. B Max. O.A. Length C Thread Length D Wrenching Nut Thickness E Wrenching Nut Flat Size
* mm. in. mm. in. mm. in. mm. in. mm. in. mm.

Oval Gland

Q Cable 6,1 x 9,7 1 M3231GCZ LTCG 1/2 6.1x9.7MM /CSA .875 22,2 1.70 43,2 .61 15,5 .21 5,3 .98 24,9

Break-Thru Skinned Over Gland

Q Cables plus Ground 6,1 x 9,7 3,3 1 M3234GDA-SM SMCG 3/4 6.1x9.7MM 1-3.3MM /CSA 1.109 28,2 2.00 50,8 .62 15,7 .25 6,4 1.30 33,0
Metal Locknuts INCLUDED.



Features

  • Two new cordgrips now accommodate the Enphase Q Cable – M3231GCZ (1/2″ NPT) and M3234GDA-SM (3/4″ NPT).
  • The 1/2″ version provides liquid tight entry for one Enphase Q Cable – .24 x .38″ (6,1 x 9,7 mm).
  • The 3/4″ version provides liquid tight entry for up to two Enphase Q Cables – .24 x .38″ (6,1 x 9,7 mm) and an additional .130″ (3,3 mm) dia. hole for a #8 solid grounding cable.
  • The 3/4″ version utilizes our skinned-over technology so any unused holes will retain a liquid tight seal.
  • Rated for use with DG cable.

QuickSpecs

Material Nylon 6/6 with TPE Sealing Gland
Certifications Listed under Underwriters’ Laboratories File E504900
Certified by the Canadian Standards Association File 93876
Flammability Rating 94V-2
Temperature Range Static -40°F (-40°C) to 239°F (115°C)
Dynamic -4°F (-20°C) to 212°F (100°C)
IP Rating IP 68
