HEYClip™ RevRunner® Cable Clips for 1-2 Cables

Double-Compression, Straight-thru Design

Specifications

Part number and specification

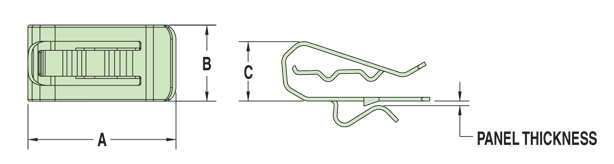

PANEL THICKNESS CLAMPING RANGE				WIRE DIA. RANGE Maximum (2) Wires	PART NO.		DESCRIPTION	FOOTPRINT A x B		OVERALL HEIGHT
Minimum		Maximum			304 Stainless	316 Stainless		FOOTPRINT A x B		OVERALL HEIGHT
in.	mm.	in.	mm.		304 Stainless	316 Stainless		in.	mm.	in.	mm.
RevRunner Clip – for panels up to .120˝ (3,0 mm) thick
.06	1,4	.13	3,2	.20" (5,1 mm)- .33" (8,3 mm) each cable	S6507	-	RevRunner Clip 100 Pack	1.00 x .50	25,4 x 12,7	.39	9,9
.06	1,4	.13	3,2	.20" (5,1 mm)- .33" (8,3 mm) each cable	S6547	-	RevRunner Clip Bulk	1.00 x .50	25,4 x 12,7	.39	9,9

Design is similar to the original SunRunner, but oriented so that cables are hidden inside the PV module frame for an aesthetically pleasing installation.
Can hold 1 or 2 cables from .20˝ (5,1 mm) to .33˝ (8,3 mm).
Installs on PV module frames or other areas with materials that are from .06˝ (1,4 mm) to .13˝ (3,2 mm) thick.

Material	.025″ thick 304 stainless steel
Temperature Range	-40°F (-40°C) to 572°F (300°C)
