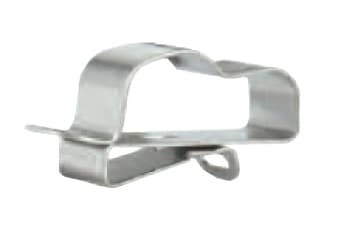

HEYClip™ Stainless Steel SunRunner® 2-S Series Cable Clips

For Rail-less Systems

Specifications

Part number and specification

PANEL THICKNESS CLAMPING RANGE				WIRE DIA. RANGE		PART NO.	DESCRIPTION	FOOTPRINT A x B		REAR TAB LENGTH		CAD
Minimum		Maximum		WIRE DIA. RANGE				FOOTPRINT A x B		REAR TAB LENGTH		CAD
in.	mm.	in.	mm.	in.	mm.			in.	mm.	in.	mm.
SunRunner 2-S
.05	1,3	.12	3,0	.30-.47	7,6-12,0	S6448	SunRunner 2-S 100 Pack	1.14 x .50	29,0 x 12,7	.68	17,3
.05	1,3	.12	3,0	.30-.47	7,6-12,0	S6488	SunRunner 2-S Bulk	1.14 x .50	29,0 x 12,7	.68	17,3
SunRunner 2-S-EZ
.12	3,0	.25	6,4	.30-.47	7,6-12,0	S6449	SunRunner 2-S-EZ 100 Pack	1.14 x .50	29,0 x 12,7	.68	17,3
.12	3,0	.25	6,4	.30-.47	7,6-12,0	S6489	SunRunner 2-S-EZ Bulk	1.14 x .50	29,0 x 12,7	.68	17,3

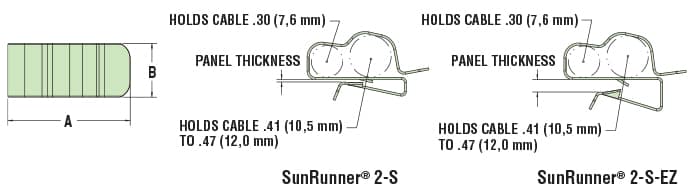

Designed to hold Micro-Inverter Cables .413 ̋ (10,5 mm) to .472 ̋ (12,0 mm) and Module Cables up to .300 ̋ (7,6 mm) in diameter for rail-less mounting systems.
Constructed from heat treated 410 stainless steel for excellent strength and corrosion protection for outdoor exposure.
Smooth clip edges prevent damage to cable installation.
Designed for panel and cable retention up to 15 lbs.
Neatly dress cables on PV panels or module frames from .050 ̋ (1,3 mm) to .250 ̋ (6,4 mm) thick.

Material	.020″ thick heat treated 410 stainless steel
Certifications	Certified by UL for Compliance with both Canadian and US Requirements under File E54523
