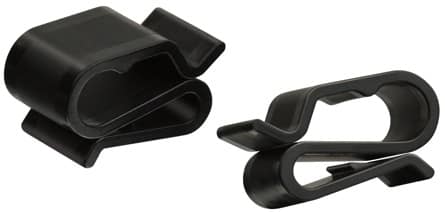

HEYClip™ SunRunner® Nylon Cable Clips for 1-2 Cables

Double-Compression, Straight-thru Design

Specifications

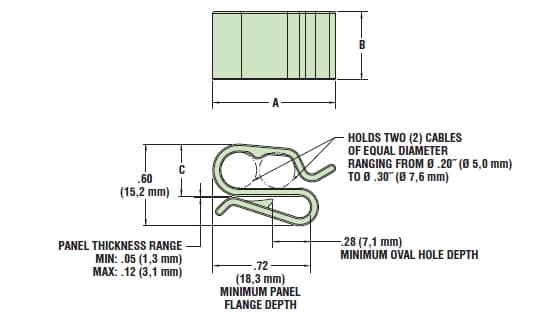

Part number and specification

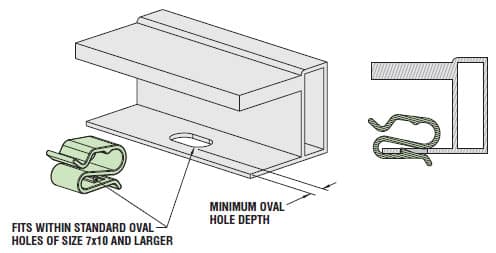

PANEL THICKNESS CLAMPING RANGE				MINIMUM PANEL FLANGE DEPTH		MINIMUM OVAL HOLE DEPTH		WIRE DIAMETER RANGE	PART NO.		DESCRIPTION	FOOTPRINT A x B		OVERALL HEIGHT C
Minimum		Maximum		MINIMUM PANEL FLANGE DEPTH		MINIMUM OVAL HOLE DEPTH			PART NO.			FOOTPRINT A x B		OVERALL HEIGHT C
in.	mm.	in.	mm.	in.	mm.	in.	mm.		HS/UV Nylon	Nylon 12		in.	mm.	in.	mm.
0.05	1,3	0.12	3,1	0.72	18,3	0.28	7,1	.20" (5,0 mm) - .315" (8,0 mm) each cable	S6551	S6553	SunRunner® Nylon 100 Pack	0.91 x 0.50	23,1 x 12,7	0.39	9,9
0.05	1,3	0.12	3,1	0.72	18,3	0.28	7,1	.20" (5,0 mm) - .315" (8,0 mm) each cable	S6552	S6554	SunRunner® Nylon Bulk	0.91 x 0.50	23,1 x 12,7	0.39	9,9

Material	Heat Stable, UV Rated Nylon 6/6 or Nylon 12
Temperature Range	Nylon 6/6: -40°F (-40°C) to 221°F (105°C) Nylon 12: -40°F (-40°C) to 248°F (120°C)

Competitor Cross Reference

Use our cross-reference tool to find equivalent Heyco parts that match competitor products, ensuring compatibility and performance.
