HEYClip™ SunRunner® Short Flange for 1-2 Cables

Double-Compression, Straight-thru Design

Specifications

Part number and specification

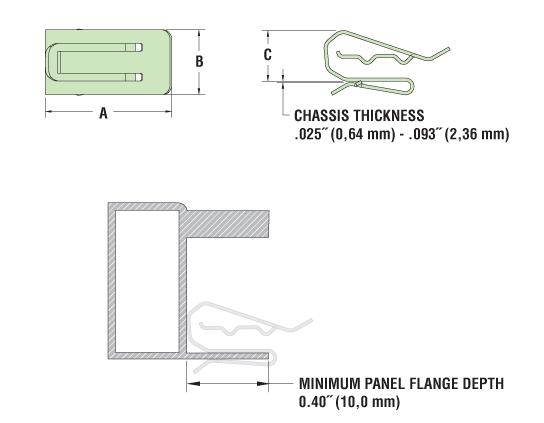

PANEL THICKNESS CLAMPING RANGE				WIRE DIA. RANGE	PART NO. 304 Stainless	DESCRIPTION	FOOTPRINT A x B		OVERALL HEIGHT C
Minimum		Maximum					FOOTPRINT A x B		OVERALL HEIGHT C
in.	mm.	in.	mm.				in.	mm.	in.	mm.
SunRunner Clip for panels up to .093 ̋ (2,36 mm) thick
.025	0,64	.093	2,36	.20" (5,1 mm)- .30" (7,6 mm) each cable	S6570	SunRunner^® Short Flange 100 Pack	.97 x .50	24,6 x 12,7	.39	9,9
.025	0,64	.093	2,36	.20" (5,1 mm)- .30" (7,6 mm) each cable	S6571	SunRunner^® Short Flange Bulk	.97 x .50	24,6 x 12,7	.39	9,9

The NEW Heyco SunRunner Short Flange attaches to newer modules with smaller frames.
Minimum flange depth requirement of only 10 mm and holds as tight as our popular SunRunner series.
Heyco’s SunRunner’s robust “double- compression” design securely holds a variety of cables ranging from .199 ̋ (5,0 mm) to .315 ̋ (7,6 mm) in diameter.
Heyco SunRunner Clips are designed to provide a better method for PV module wire management and may be used wherever single or multiple cable management is needed.
Smooth clip edges prevent damage to cable insulation.
Locking tabs securely fasten clips to module extrusions, or other panels.
Generous lead-in for installation without tools.
Neatly dresses cables on PV panel frames or along mounting channels.
Constructed from corrosion-resistant 304 stainless steel; not for use in a marine salt water environment.

Material	.025″ thick 304 stainless steel
Certifications	Certified by UL for Compliance with both Canadian and US Requirements under File E54523
Temperature Range	-40°F (-40°C) to 572°F (300°C)
