Specifications

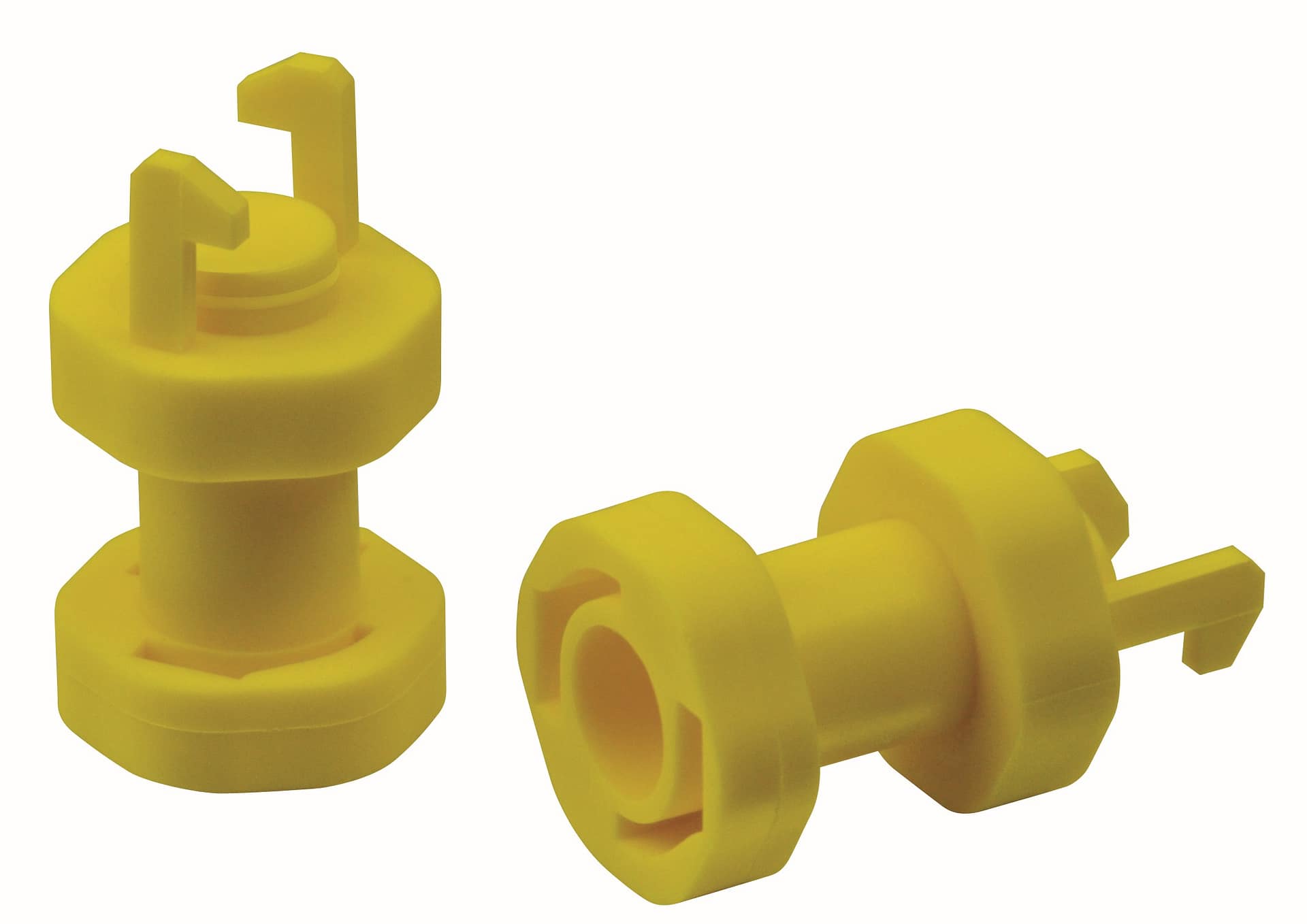

Part number and specification

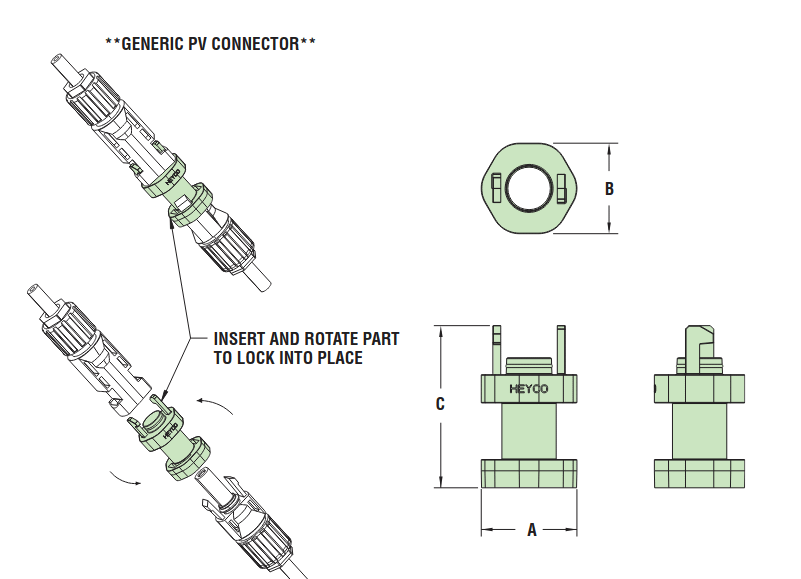

PART NO. DESCRIPTION PART DIMENSIONS
A B C
in. mm. in. mm. in. mm.
S6254 LTPVCC YELLOW 100/BAG 0.85 21,6 0.80 20,3 1.43 36,3
S6255 LTPVCC YELLOW BULK



Features

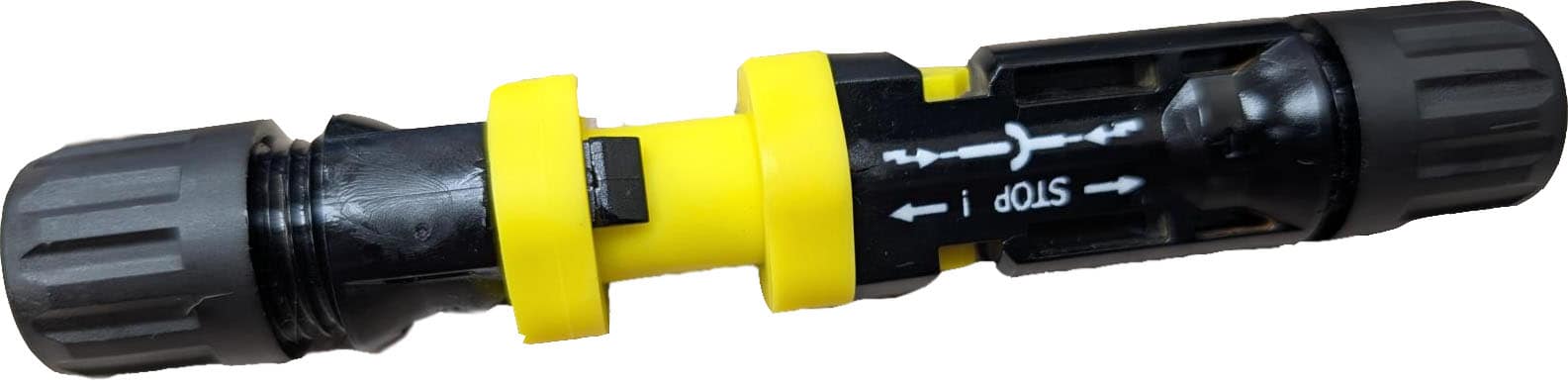

  • All-in-one solution to protecting the exposed end of any unsecured 4 mm PV connector.
  • Simple push-in with quarter-turn feature keeps connector cap in place.
  • Plugs in to male or female end of unsecured 4 mm PV connector.
  • Protects unused and exposed 4 mm PV connectors from liquids, insects, and dust particulate until ready for final installation.
  • Meets a minimum of IPX4 on all 4 mm PV connectors on the market.
  • Meets IP68 for the most popular 4 mm PV connector on the market, the Staubli MC4.
  • Reusable.

QuickSpecs

Material Heat Stable, UV Rated Nylon 6/6 – Color: Yellow
Temperature Range -40°F (-40°C) to 221°F (105°C)
