HEYClip™ Stainless Steel SunRunner® 4-2 and 4-2U Cable Clips

For Oval Micro-Inverter Cables

Specifications

Part number and specification

CHANNEL THICKNESS CLAMPING RANGE				WIRE CAPACITY		PART NO.	DESCRIPTION	FOOTPRINT		REAR TAB LENGTH
Minimum		Maximum		WIRE CAPACITY				FOOTPRINT		REAR TAB LENGTH
in.	mm.	in.	mm.	in.	mm.			in.	mm.	in.	mm.

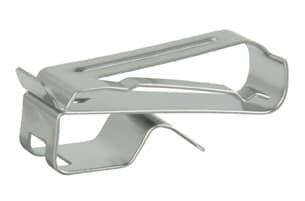

SunRunner 4-2
.08	2,0	.25	6,4	.25 x 1.00	6,4 x 25,4	S6504	SunRunner 4-2 100 pack	.50 x 1.34	12,7 x 34,0	.84	21,3
.08	2,0	.25	6,4	.25 x 1.00	6,4 x 25,4	S6544	SunRunner 4-2 Bulk	.50 x 1.34	12,7 x 34,0	.84	21,3

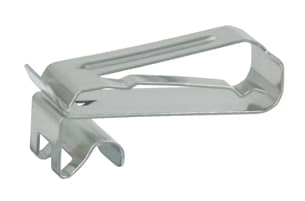

SunRunner 4-2U
.25	6,4	.25	6,4	.25 x 1.00	6,4 x 25,4	S6505	SunRunner 4-2U 100 pack	.50 x 1.34	12,7 x 34,0	.38	9,7
.25	6,4	.25	6,4	.25 x 1.00	6,4 x 25,4	S6545	SunRunner 4-2 Bulk	.50 x 1.34	12,7 x 34,0	.38	9,7

Designed to hold Micro-Inverter oval cables .250″ (6,3 mm) x .385″(9,8 mm).
Constructed from heat treated 410 stainless steel for excellent strength and corrosion protection for outdoor exposure.
Smooth clip edges prevent damage to cable insulation.
“S” hook clip design will fit a wide variety of extruded aluminum profiles.
SunRunner 4-2 is designed for solar mounting frames such as the ones used by with Everest, SnapNrack and similar extrusions.
SunRunner 4-2U features a shorter S hook for Unirac, IronRidge and similar frame profiles.
Neatly dresses cables along mounting frame channels from .080″ (2,5 mm) to .250″ (6,4 mm) thick.
For typical rack profile applications, see HEYClip™ Stainless Steel and Nylon UVX SunRunner® 2 and SunRunner® 4-2 Series Cable Clips for Micro-Inverter Cables.

Material		.020″ thick 410 stainless steel
Certifications		Certified by UL for Compliance with both Canadian and US Requirements under File E54523
Temperature Range		-40°F (-40°C) to 572°F (300°C)
