Heyco® Quarter-Turn Mount Wire Clips, Helios QTM Series

Part number and specification

WIRE DIAMETER RANGE 1-2 Wires	PART NO.		DESCRIPTION	PART DIMENSION
	HS Nylon 6/6 Black 100 Pack	HS Nylon 6/6 Black Bulk		A Height		B Width		C Depth
	HS Nylon 6/6 Black 100 Pack	HS Nylon 6/6 Black Bulk		in.	mm.	in.	mm.	in.	mm.
.230 (5,8 mm) - .315 (8,0 mm) Each Cable	S6634B	S6635B	Helios QTM-3	1.03	26,2	.87	22,1	.38	9,6

WIRE DIAMETER RANGE 1-2 Wires	PART NO.		DESCRIPTION	PART DIMENSION
	HS Nylon 6/6 Black 100 Pack	HS Nylon 6/6 Black Bulk		A Height		B Width		C Depth
	HS Nylon 6/6 Black 100 Pack	HS Nylon 6/6 Black Bulk		in.	mm.	in.	mm.	in.	mm.
.230 (5,8 mm) - .315 (8,0 mm) Each Cable	S6636B	S6637B	Helios QTM-2	1.03	26,2	.87	22,1	.38	9,6

WIRE DIAMETER RANGE 1-2 Wires	PART NO.		DESCRIPTION	PART DIMENSION
	HS Nylon 6/6 Black 100 Pack	HS Nylon 6/6 Black Bulk		A Height		B Width		C Depth
	HS Nylon 6/6 Black 100 Pack	HS Nylon 6/6 Black Bulk		in.	mm.	in.	mm.	in.	mm.
.230 (5,8 mm) - .315 (8,0 mm) Each Cable	S6638B	S6639B	Helios QTM-5	1.03	26,2	.87	22,1	.38	9,6

Features

Simple application by hand with quick twist 90 degrees for friction fit swivel hold in place and high pull out retention.
Simply twist to remove for routing and location adjustment.
Holds up to 2 cables between .230″ – .315″ (5,8 – 8,0 mm) each.
Cables install with fingertip pressure.
Design provides high axial retention with one cable and even higher retention with both cable bays filled.
Material choices cover a number of application requirements for flammability and temperature.

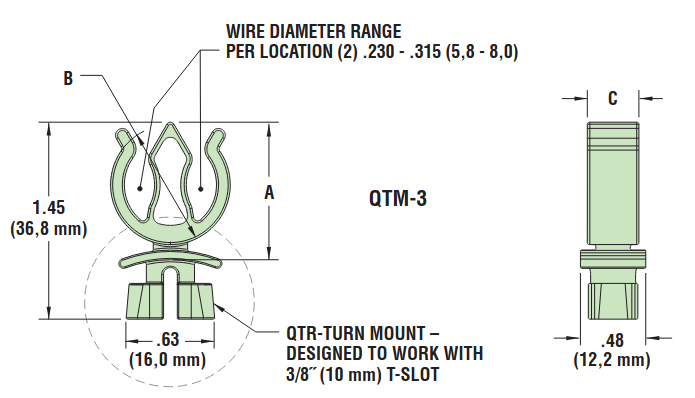

All new Quarter-Turn Mount #3 style (QTM-3), designed to work with popular IronRidge and Unirac solar racking systems.
QTM-3 could be used in any 3/8˝ T-Slot racking or rail system from other manufacturers.

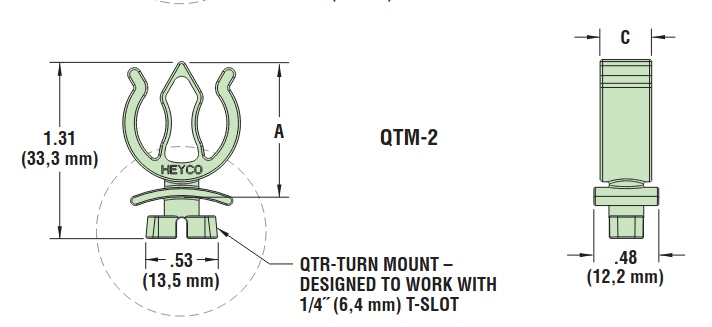

All new Quarter-Turn Mount #2 style (QTM-2), designed to work with popular IronRidge and Unirac and Small Solar Stack solar racking systems.
QTM-2 could be used in any 1/4˝ T-Slot racking or rail system from other manufacturers.

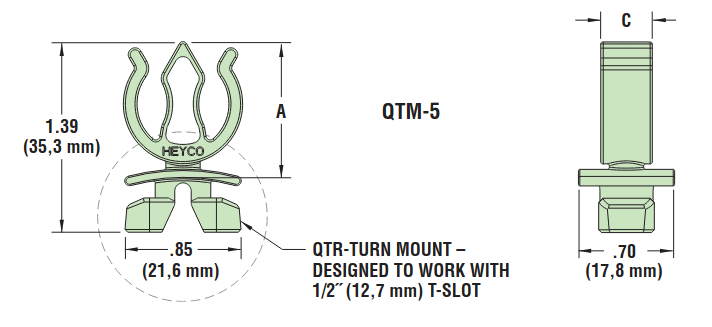

All new Quarter-Turn Mount #5 style (QTM-5), designed to work with popular large Solar Stack racking systems.
QTM-5 can also be used on Powermation racking for industrial automation and robotics workstations. QTM-5 could be used in any 1/2˝ T-Slot racking or rail system from other manufacturers.
