Heyco® Quarter-Turn Mount Wire Clips SBC QTM Series

Part number and specification

BUNDLE DIAMETER				PART NO.		DESCRIPTION	PART DIMENSION
BUNDLE DIAMETER				HS Nylon 6/6 Black 100 Pack	HS Nylon 6/6 Black Bulk		A Height		B Width		C Depth
in.	mm.	in.	mm.	HS Nylon 6/6 Black 100 Pack	HS Nylon 6/6 Black Bulk		in.	mm.	in.	mm.	in.	mm.
.29	7,4	.44	11,2	15412B	15414B	SBCQTM-3 437	1.03	26,2	1.12	28,4	.31	7,9
.41	10,4	.69	17,5	15416B	15418B	SBCQTM-3 687	1.18	30,0	1.24	31,5
.60	15,2	.88	22,2	15420B	15422B	SBCQTM-3 875	1.51	38,4	1.66	42,2

BUNDLE DIAMETER				PART NO.		DESCRIPTION	PART DIMENSION
BUNDLE DIAMETER				HS Nylon 6/6 Black 100 Pack	HS Nylon 6/6 Black Bulk		A Height		B Width		C Depth
in.	mm.	in.	mm.	HS Nylon 6/6 Black 100 Pack	HS Nylon 6/6 Black Bulk		in.	mm.	in.	mm.	in.	mm.
.29	7,4	.44	11,2	15348B	15350B	SBCQTM-2 437	1.03	26,2	1.12	28,4	.31	7,9
.41	10,4	.69	17,5	15352B	15354B	SBCQTM-2 687	1.18	30,0	1.24	31,5
.60	15,2	.88	22,2	15356B	15358B	SBCQTM-2 875	1.51	38,4	1.66	42,2

BUNDLE DIAMETER				PART NO.		DESCRIPTION	PART DIMENSION
BUNDLE DIAMETER				HS Nylon 6/6 Black 100 Pack	HS Nylon 6/6 Black Bulk		A Height		B Width		C Depth
in.	mm.	in.	mm.	HS Nylon 6/6 Black 100 Pack	HS Nylon 6/6 Black Bulk		in.	mm.	in.	mm.	in.	mm.
.29	7,4	.44	11,2	15484B	15486B	SBCQTM-5 437	1.03	26,2	1.12	28,4	.31	7,9
.41	10,4	.69	17,5	15488B	15490B	SBCQTM-5 687	1.18	30,0	1.24	31,5
.60	15,2	.88	22,2	15492B	15494B	SBCQTM-5 875	1.51	38,4	1.66	42,2

Features

Simple application by hand with quick twist 90° swivel for friction fit, hold in place with high pull-out retention.
Simply twist to remove for routing and location adjustment.
Wide cable diameter range handles multiple applications.
Releasable and reusable.
Secure clamping will not release easily.
Locking feature prevents twisting apart.
Material choices cover a number of application requirements for flammability and temperature.

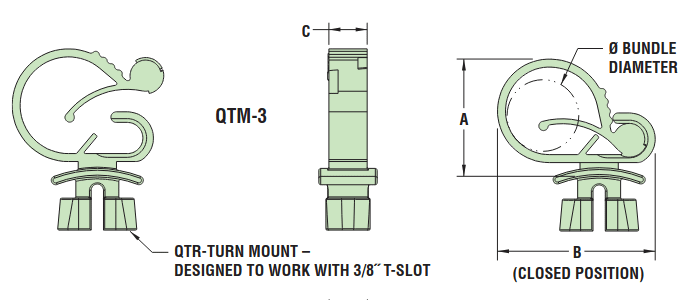

All new Quarter-Turn Mount #3 style (QTM-3), designed to work with popular IronRidge and Unirac solar racking systems.
Could be used in any 3/8˝ T-Slot racking or rail system from other manufacturers.

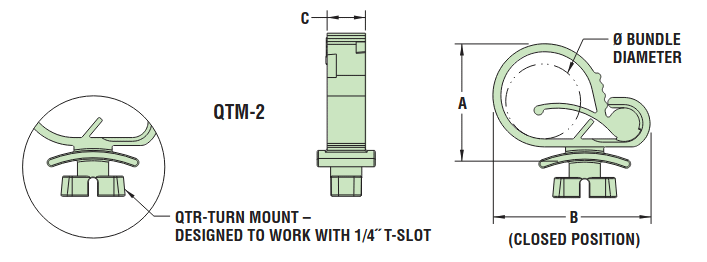

All new Quarter-Turn Mount #2 style (QTM-2), designed to work with popular IronRidge and Unirac and Small Solar Stack solar racking systems.
QTM-2 could be used in any 1/4˝ T-Slot racking or rail system from other manufacturers.

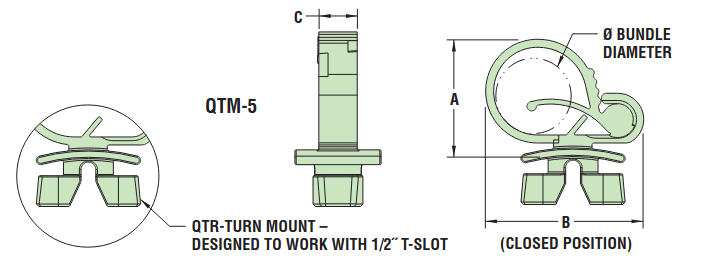

All new Quarter-Turn Mount #5 style (QTM-5), designed to work with popular large Solar Stack racking systems.
QTM-5 can also be used on Powermation racking for industrial automation and robotics workstations.
QTM-5 could be used in any 1/2˝ T-Slot racking or rail system from other manufacturers.
