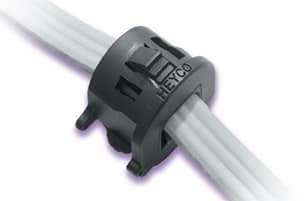

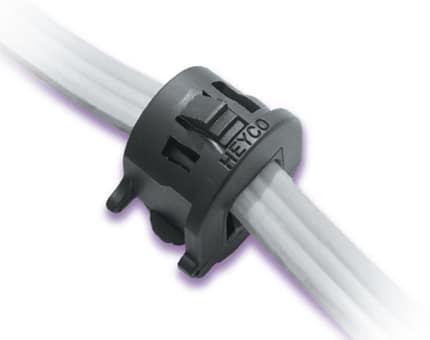

Heyco® RDD Lockit™ Strain Relief Bushings - Straight-Thru (Flat Cables)

Part number and specification

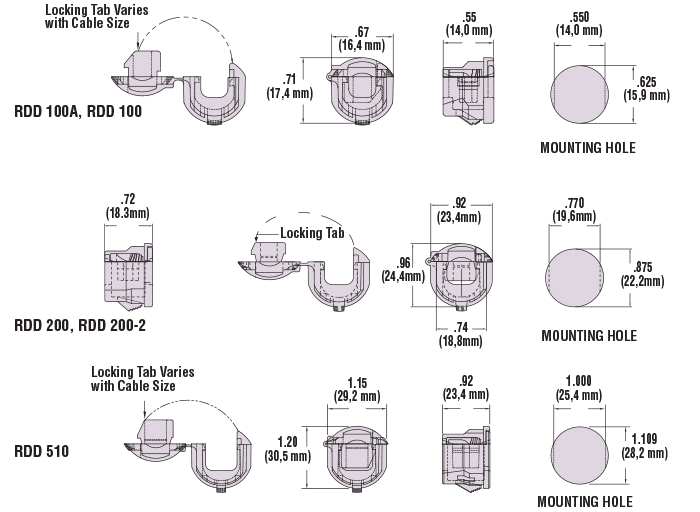

WILL FIT THESE CABLES				PANEL DIMENSIONS				RDD LOCKIT STRAIN RELIEF for Faster Assembly			Corresponding Mounting Hole Plug
UL Type	AWG/ Conductors	Approximate Size		Mounting Hole Size		Thickness		RDD LOCKIT STRAIN RELIEF for Faster Assembly			Corresponding Mounting Hole Plug
		Approximate Size		Mounting Hole Size		Thickness		PART NO.		DESC.	PART NO.	DESC.
		in.	mm.	in.	mm.	in.	mm.	Black	White	DESC.	PART NO.	DESC.
SPT-1	18/2 18/3	.105 x .222 .116 x .315	2,7 x 5,6 2,9 x 8,0	.625 w/ .550 flats	15,9 w/ 14,0 flats	.032	0,8	1872	1873	RDD 100A	2497	DD 625-550
						.040	1,0
						.048	1,2
						.063	1,6
						.099	2,5
SPT-2 HPN	18/2 18/3 16/3	.116 x .315 .160 x .300	2,9 x 8,0 4,1 x 7,6	.625 w/ .550 flats	15,9 w/ 14,0 flats	.032	0,8	1874	1875	RDD 100	2497	DD 625-550
						.040	1,0
						.048	1,2
						.063	1,6
						.099	2,5
HPN	18/3	.15 x .34 .16 x .37	3,8 x 8,6 4,1 x 9,4	.875 w/ .770 flats	22,2 w/ 19,6 flats			1878	1879	RDD 200	2509	DD 875-770
HPN	16/3	.15 x .34 .16 x .37	3,8 x 8,6 4,1 x 9,4
SPT-2	18/3	.15 x .40	3,8 x 10,2			.032	0,8
SPT-2	16/3	.16 x .41	4,1 x 10,4			.063	1,6
SPT-3	18/2	.19 x .35	4,8 x 8,9			.099	2,5
	18/3	.19 x .39	4,8 x 9,9			.126	3,2
	16/2	.20 x .37	5,1 x 9,4			.157	4,0
	16/3	.20 x .43	5,1 x 10,9
	14/2	.24 x .42	6,1 x 10,7
Same as RDD 200 above except –––––––––––––––––––––––––––––>						.078	2,0	1876	1877	RDD 200-2*	2509	DD 875-770
Same as RDD 200 above except –––––––––––––––––––––––––––––>						.140	3,4	1876	1877	RDD 200-2*	2509	DD 875-770
Same as RDD 200 above except –––––––––––––––––––––––––––––>				1.109 w/ 1.006 flats	28,2 w/ 25,4 flats	.063	1,6	1798	1799	RDD 510	2717	DD 1109-1000
						.099	2,5
						.126	3,2
						.157	4,0
						.187	4,8

Standard color black. Consult Heyco for white and other colors. *Designed for cast or other mounting holes with rounded edges.

Features

Assembly friendly! Independent of insertion into the panel, RDD Lockit™ Strain Reliefs self-lock onto the cable. Preassemble RDD Lockits off line for final assembly at a later time or remote location, for lower installed cost!
Install easily with fingertip pressure into a standard round or Double D hole. No tools required, even for hand assembly.
Protect the lifeline of your electric/electronic products by absorbing the forces of push and pull that may be exerted on the flexible power cord. Double D design eliminates the possibility of part rotation under forces of twist.
Multiple panel locking steps secure Lockit Strain Reliefs into a wide range of panel thicknesses for a flush, finished fit.
Heyco’s automated Pre-Assembly Equipment speeds assembly of the RDD onto the cable and thus lowers costs while greatly reducing risk of carpal tunnel syndrome.
Consult Heyco for other wire types and sizes.
Corresponding Mounting Hole Plugs can be used to fill blank/unused Mounting Holes and thus allow for a single panel design for multiple applications.
For Double D Mounting Hole Punches, click here.

QuickSpecs

Material		Nylon 6/6
Certifications		Recognized under the Component Program of Underwriters’ Laboratories File E15331
Certifications		Certified by the Canadian Standards Association File 8919
Flammability Rating		94V-2
Temperature Range		-.04°F (-18°C) to 221°F (105°C)
