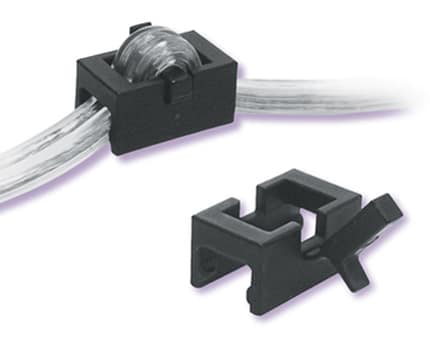

Heyco® In-Line Strain Relief Bushing

Specifications

Part number and specification

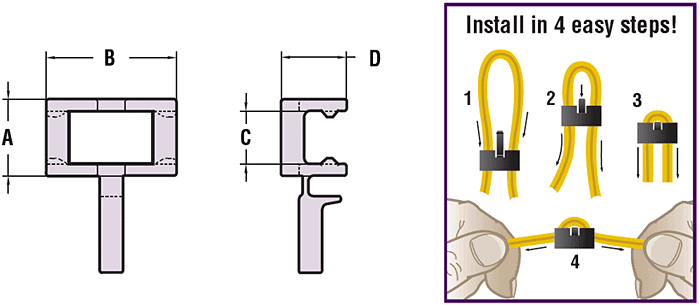

WILL FIT THESE CABLES				PART DIMENSIONS								PART NO.	DESCRIPTION
UL Type	AWG/Conductors	Approximate Size		A		B		C		D		Black
UL Type	AWG/Conductors	in.	mm.	in.	mm.	in.	mm.	in.	mm.	in.	mm.	Black
SPT-2	18/2	.150 x .280	3,8 x 7,1	.41	10,4	.70	17,8	.29	7,4	.35	8,9	1854	ISR 14-27

Standard color black. Consult Heyco for white and other colors. No panel required for application.

Quick and easy to secure on any SPT-2 wire.
Cost effective. No cutting or tools needed as with metal clamp type strain reliefs. There is no risk of repetitive motion strain or injury.
UL Recognized (far exceeds UL’s 35# pull-out test).
UL Approved for use with SPT-2 Wire.
Replaces UL Knot method of providing strain relief.

Material		Nylon 6/6
Certifications		Recognized under the Component Program of Underwriters’ Laboratories File E15331
Certifications		Certified by the Canadian Standards Association File 8919
Flammability Rating		94V-2
Temperature Range		-.04°F (-18°C) to 221°F (105°C)
