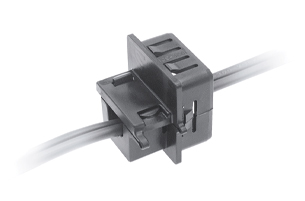

Heyco® Multi-Lockit™ Strain Relief Bushing (Round and Flat Cables)

Specifications

Part number and specification

WILL FIT THESE CABLES				PANEL DIMENSIONS				PART NO.	DESCRIPTION
UL Type	AWG/ Conductors	Approximate Size		Mounting Hole Size		Thickness		Black
UL Type	AWG/ Conductors	in.	mm.	in.	mm.	in.	mm.	Black
Round Cable	18/3	.250	6,4	1.142 x 1.142	29,0 x 29,0	.032	0,8	1843	LSR1939-300
Flat Cable SPT-3	18/3	.173 x .380	4,39 x 9,65	1.142 x 1.142	29,0 x 29,0	.032	0,8	1843	LSR1939-300

Standard color black. Consult Heyco for white and other colors.

Assembly friendly! Independent of insertion into the panel, Lockit™ Strain Reliefs self-lock onto the cable. Preassemble off line for final assembly at a later time or remote location, for lower installed cost!
Large mounting hole design allows passage of plugs or bulky assemblies during installation.
Passes the UL pull-out test requirements with or without panel support.
Protects the lifeline of your electric/electronic products by absorbing the forces of push and pull that may be exerted on the flexible power cord.
Rectangular design eliminates the possibility of part rotation under forces of twist.

Material		Nylon 6/6
Certifications		Recognized under the Component Program of Underwriters’ Laboratories File E15331
Certifications		Certified by the Canadian Standards Association File 8919
Flammability Rating		94V-2
Temperature Range		-.04°F (-18°C) to 221°F (105°C)
