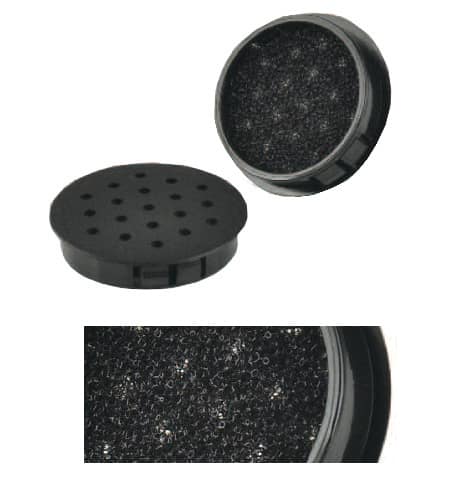

HEYClean™ Filter Insert Vent Plugs
Mounting Hole Diameter Range: .500″ (12,7 mm) to 3.000″ (76,2 mm)
| MOUNTING HOLE DIAMETER | PART NO. | DESCRIPTION | No. of Vent Holes | PART DIMENSIONS | CAD | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

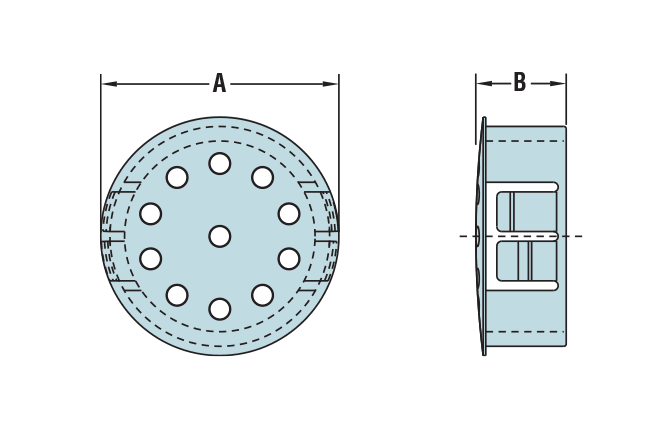

| Black | A Head Diameter | B Overall Height | ||||||||||
| in. | mm. | in. | mm. | in. | mm. | |||||||
Multiple Locking Steps for Panel Thickness up to .125" (3,2 mm) |
||||||||||||
| .500 | 12,7 | 4917 | FIVP 500 | 4 | .56 | 14,2 | .41 | 10,4 | ||||
| .875 | 22,2 | 4919 | FIVP 875 | 9 | 1.02 | 25,8 | .45 | 11,5 |  |
|||
| 1.000 | 25,4 | 4921 | FIVP 1000 | 9 | 1.20 | 30,6 | |
|||||
| 1.093-1.125 | 27,8-28,6 | 4923 | FIVP 1093 | 9 | 1.22 | 30,9 | |
|||||
| 1.375 | 34,9 | 4931 | FIVP 1375 | 11 | 1.50 | 38,1 | |
|||||
| 1.500 | 38,1 | 4933 | FIVP 1500 | 13 | 1.67 | 42,4 | |
|||||
| 2.000 | 50,8 | 4937 | FIVP 2000 | 19 | 2.14 | 54,4 | .47 | 11,9 | |
|||
Multiple Locking Steps for Panel Thickness up to .250" (6,4 mm) |
||||||||||||
| .875 | 22,2 | 4973 | FIVP 875 | 9 | 1.02 | 25,8 | .56 | 14,3 | ||||
| 1.000 | 25,4 | 4975 | FIVP 1000 | 9 | 1.20 | 30,6 | ||||||
| 1.093 - 1.125 | 27,8 - 28,6 | 4977 | FIVPT 1093 | 9 | 1.22 | 30.9 | ||||||
| 1.375 | 34,9 | 4983 | FIVPT 1375 | 11 | 1.50 | 38,1 | ||||||
| 1.500 | 38,1 | 4985 | FIVPT 1500 | 13 | 1.67 | 42,4 | ||||||
| 2.000 | 50,8 | 4989 | FIVPT 2000 | 19 | 2.14 | 54,4 | .58 | 14,7 | |
|||
| 2.500 | 63,5 | 4939 | FIVP 2.5 | 19 | 2.72 | 69,0 | .75 | 19,1 | |
|||
| 3.000 | 76,2 | 4941 | FIVP 3.0 | 26 | 3.15 | 80,0 | .74 | 18,8 | |
|||
| Material | Nylon 6/6 |
|---|---|
| Flammability Rating | 94V-2 |
| Temperature Range | -40°F (-40°C) to 221°F (105°C) |
