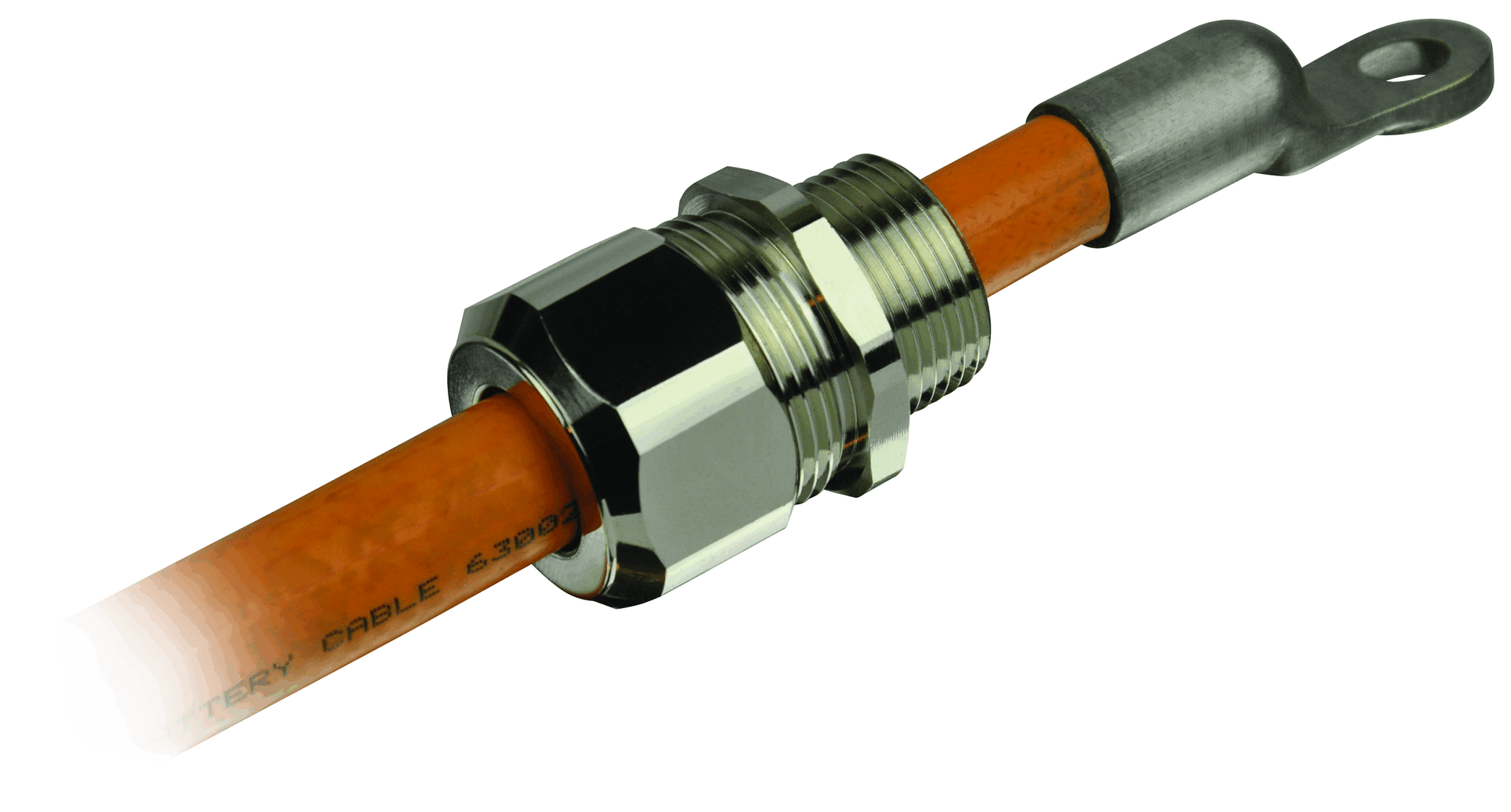

Heyco Crimp-tite EMC Cordgrips

Part number and specification

Video may not play automatically depending on your browser settings. Please press play below if it does not.

NPT Hubs
CABLE DIAMETER +.000/-.020		Cable size		Part NO	Description	PART DIMENSIONS

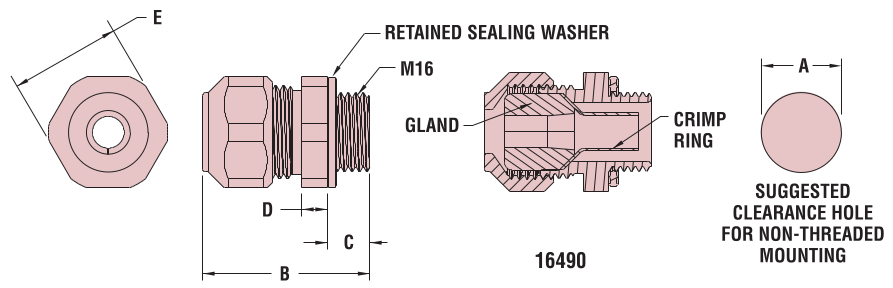

						A Clearance Hole Dia.		B Max. O.A. Length		C Thread Length		D Wrenching Nut
						A Clearance Hole Dia.		B Max. O.A. Length		C Thread Length		Thk.		Flat Size
in.	mm.	AWG	mm²			in.	mm.	in.	mm.	in.	mm.	in.	mm.	in.	mm.
.228	5,8	11	5	16460	HEMC 3/8 NPT-5 BRASS	.680	17,3	1.39	35,3	0.41	10,4	0.2	5,1	0.88	22,4
.327	8,3	7	12	16462	HEMC 3/8 NPT-12 BRASS	.680	17,3	1.39	35,3	0.41	10,4	0.2	5,1	0.88	22,4
.327	8,3	7	12	16464	HEMC 1/2 NPT-12 BRASS	.875	22,2	1.69	42,9	0.53	13,5	0.2	5,1	1.06	26,9
.366	9,3	6	16	16466	HEMC 1/2 NPT-16 BRASS
.433	11,0	4	25	16468	HEMC 1/2 NPT-25 BRASS
.508	12,9	2	35	16470	HEMC 1/2 NPT-35 BRASS
.508	12,9	2	35	16472	HEMC 3/4 NPT-35 BRASS	1.109	28,2	1.93	49,0	0.55	14,0	0.2	5,1	1.31	33,3
.587	14,9	1	50	16474	HEMC 3/4 NPT-50 BRASS
.669	17,0	2/0	70	16476	HEMC 3/4 NPT-70 BRASS
.669	17,0	2/0	70	16478	HEMC 1 NPT-70 BRASS	1.375	34,9	2.29	58,2	0.69	17,5	0.2	5,1	1.75	44,5
.768	19,5	3/0	95	16480	HEMC 1 NPT-95 BRASS	1.375	34,9	2.29	58,2	0.69	17,5	0.2	5,1	1.75	44,5

METRIC Hubs
CABLE DIAMETER +.000/-.020		Cable size		Part NO	Description	PART DIMENSIONS
						A Clearance Hole Dia.		B Max. O.A. Length		C Thread Length		D Wrenching Nut
						A Clearance Hole Dia.		B Max. O.A. Length		C Thread Length		Thk.		Flat Size
in.	mm.	AWG	mm²			in.	mm.	in.	mm.	in.	mm.	in.	mm.	in.	mm.
.228	5,8	11	5	16490	HEMC M16-5 BRASS	.630	16,0	1.31	33,3	0.34	8,6	0.2	5,1	0.88	22,4
.327	8,3	7	12	16492	HEMC M16-12 BRASS	.630	16,0	1.31	33,3	0.34	8,6	0.2	5,1	0.88	22,4
.327	8,3	7	12	16494	HEMC M20-12 BRASS	.787	20,0	1.58	40,1	0.42	10,7	0.2	5,1	1.06	26,9
.366	9,3	6	16	16496	HEMC M20-16 BRASS
.433	11,0	4	25	16498	HEMC M20-25 BRASS
.508	12,9	2	35	16500	HEMC M20-35 BRASS
.508	12,9	2	35	16502	HEMC M25-35 BRASS	.985	25,0	1.91	48,5	0.53	13,5	0.2	5,1	1.31	33,3
.587	14,9	1	50	16504	HEMC M25-50 BRASS
.669	17,0	2/0	70	16506	HEMC M25-70 BRASS
.669	17,0	2/0	70	16508	HEMC M32-70 BRASS	1.260	32,0	2.19	55,6	0.59	15,0	0.2	5,1	1.75	44,5
.768	19,5	3/0	95	16510	HEMC M32-95 BRASS	1.260	32,0	2.19	55,6	0.59	15,0	0.2	5,1	1.75	44,5

Features

Ideal for applications where Electromagnetic Interference (EMI) protection or Electromagnetic Compatibility (EMC) is needed.
Plier jaws (sold separately), used with standard pliers found on the market, actuate directly on our crimp ring for excellent, concentric contact on your cable’s braided sheilding.
Combination of the sealing gland and the Heyco crimp guarantees a constant contact and a liquid tight seal every time.
Nickel plated brass construction for superior protection of flexible cables.
Nickel-plated finish over brass provides excellent corrosion resistance and durability.
IP X7 rated.
For use in clearance and threaded holes.
Multiple sizes for flexible cord diameters ranging from .228″ (5.8 mm) to .768″ (19.5 mm).
We recommend using the smallest cordgrip that accommodates your cable size.
Sealing gland is molded in Fluorine Rubber (FPM) material which provides great heat resistance.
Locknuts sold separately.

Material	Nickel-plated Brass w/FPM Sealing Gland
Certifications	Adheres to the testing of “Insulation Resistance with Humidity Exposure” & “Dielectric Withstand Voltage” from UL 2251, and “Grounding Test” & “Dielectric Withstand Voltage” from UL 2202
Temperature Range	-40°F (-40°C) to 212°F (100°C)
IP Rating	IP X7
