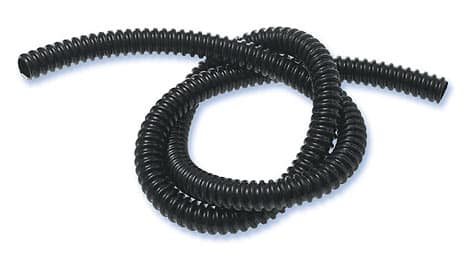

Heyco-Flex™ II Liquid Tight Tubing

Part number and specification

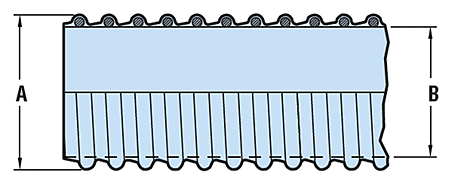

TRADE SIZE	PART NO.	DESCRIPTION	PART DIMENSIONS				STANDARD COIL LENGTH
	PART NO.		A Outside Diameter		B Inside Diameter
	Black		A Outside Diameter		B Inside Diameter
	Black		in.	mm.	in.	mm.	ft/coil
1/4	8449	HF2 1/4	.57	14,4	.40	10,0	100
3/8	8450	HF2 3/8	.70	17,8	.49	12,5
1/2	8451	HF2 1/2	.83	21,1	.63	16,1
3/4	8452	HF2 3/4	1.04	26,4	.83	21,1
1	8453	HF2 1	1.30	33,1	1.05	26,8
1-1/4	8454	HF2 1-1/4	1.65	41,8	1.40	35,4
1-1/2	8455	HF2 1-1/2	1.88	47,8	1.59	40,3	50
2	8456	HF2 2	2.36	59,9	2.03	51,6	50

Standard color black. Consult Heyco for Cut to Length Availability.

Features

Maximum flexibility; can be used in extremely tight quarters. Bend radius of Heyco-Flex II is equal to its outside diameter.
Smooth inside for easier wire pulling.
Lightweight and lower installed cost.
Integral rigid and flexible PVC construction.
Use with nylon Heyco-Flex Connectors: Straight or Snap-in, or Sweep.
Also use with NPT Quick Twist Fittings. Straight or Sweep.
1/4˝ thru 2˝ trade sizes.
Resists corrosion, oil, and water.
UV resistant.
Suitable for use in high vibration or flexing applications: Automotive Equipment, Computers and Peripherals, Fiber Optics, Lab Equipment, Lasers, Office Equipment, Processing Control and Monitoring Equipment, Robotics, White Goods
Passes submersion test of 70 psi.
Voltage Rating: 300V.

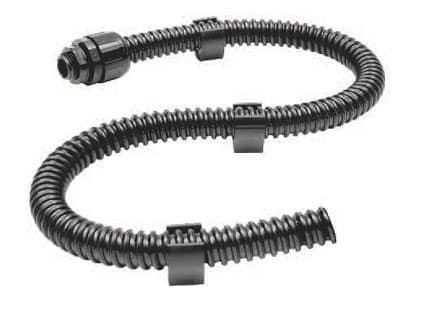

Mounting brackets are available.

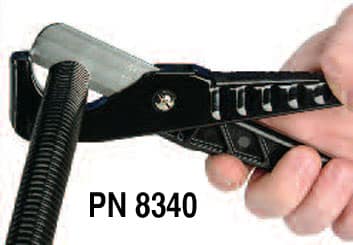

Order Part No. 8340, HF-28 Cutting Tool, for cutting Heyco-Flex conduit and tubing cleanly and evenly.

Material		PVC
Certifications		Recognized under the Component Program of Underwriters’ Laboratories File E121095
Certifications		Certified by Canadian Standard Association File 233010
Flammability Rating		VW1
Temperature Range		-.04°F (-18°C) to 158°F (70°C)
